GX-TL224
Overview
Cable tester for sequencing the hand-made patch cord. The light shows the result, ordered shining means the correct result.
Description

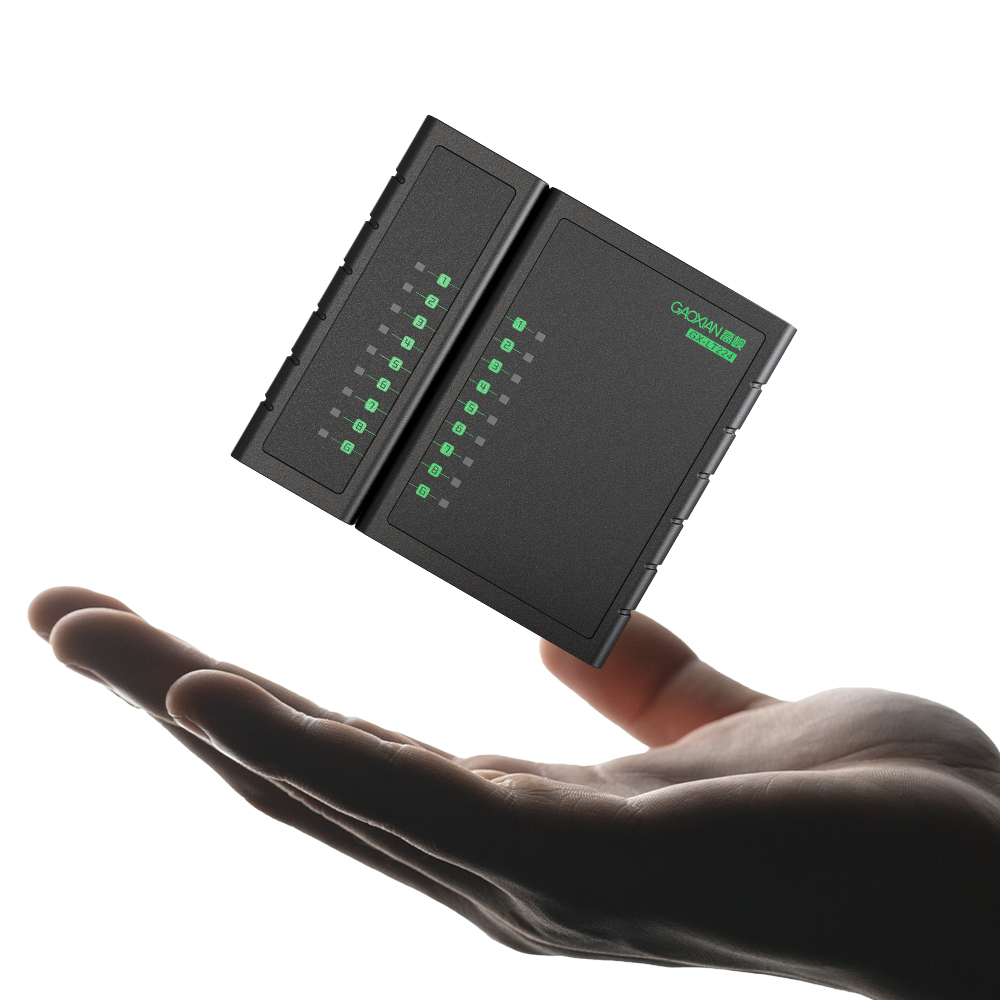

Cable tester small enough to carry anywhere. ABS shell brings the effective protection from crashing or dropping.
Implementation Standards
GB/T 12672-2009 、GB/T 4588.3-2002
Quality Warranty
1 year warranty
Specifications
| Model no. | GX-TL224 |
| Product Type | Cable tester |
| Material | ABS shell, PCB, Gold-plated phosphor bronze pin |
| Battery | 9V battery |
| Feature | (standard/non-standard)PoE 60V protection interface |
| Product size | 82.5mm*76mm*22.4mm |
| Quality Warranty | 1 year warranty |

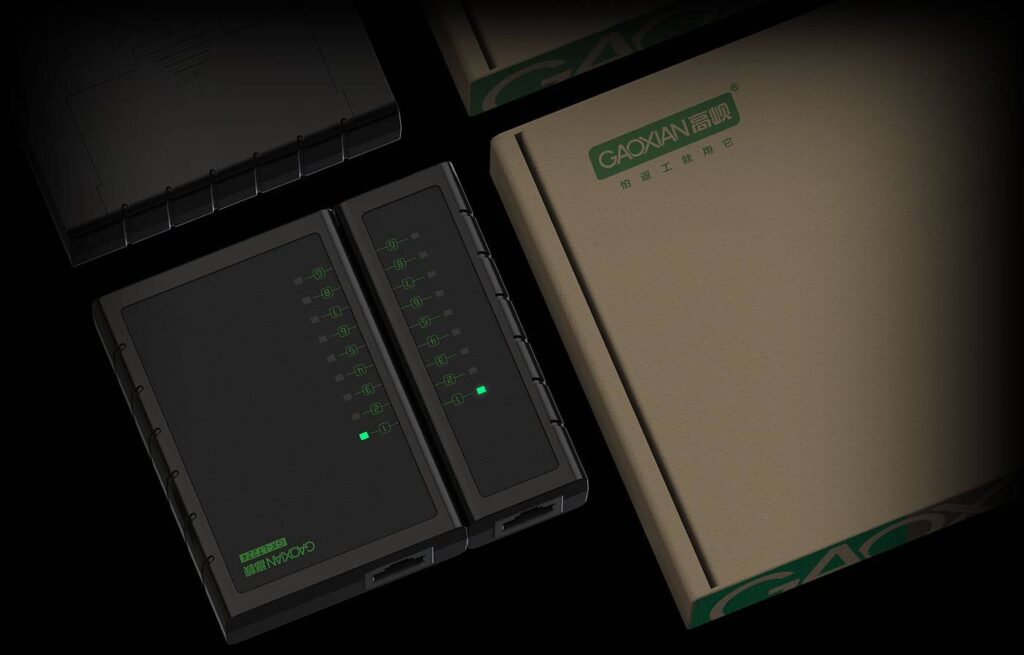

Packaging Detail
| Std. Qty | 1 set |

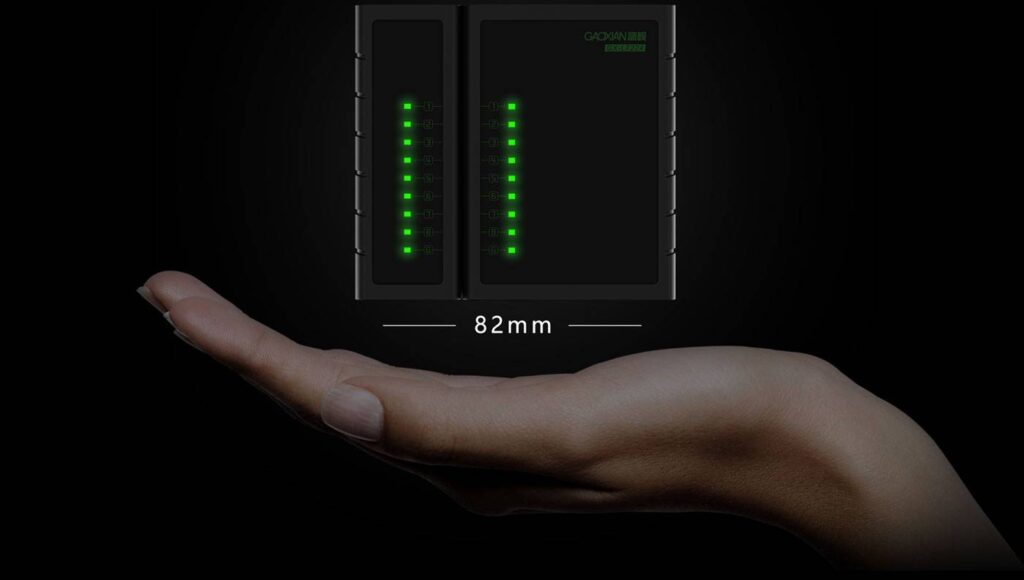

Small
Small size, long working time, you can take it anywhere, long effective work
Simply Sequencing
Test line sequence lights are all bright, and then one-on-one flashing
The on-off visualization can quickly and accurately determine the on-off problem of line sequence. If the existence of open circuit, then need to check the connection of the core connection.
If does not exist, then may carry on the line order the detection, whether has the question on the judgment line order further.
