GXDH-RJ11US
Overview
GAOXIAN RJ11 plug exceeds all IEC 60603-7 requirements.
Description
RJ11 Plug, polycarbonate, copper contact
Implementation Standards
IEC 60603-7
Quality Warranty
5 years warranty
Specifications
| Model no. | GXDH-RJ11US |
| Product Type | RJ11 Plug 6p4c |
| Body Material | Polycarbonate |
| Color | Transparent |
| Operating Temperature | -20~75 °C |
| Wiring | T568A/T568B |
| AWG | 24~26AWG |
| Aperture Size | 1.0mm |
| Min. Bending Times | 15 |
| Min. Number of Plug Insertion | >1000 |
| Flame Resistance | UL94 V2 |
| Green | RoHS |
| QC Standard | Fluke Channel |
| Quality Warranty | 5 years warranty |

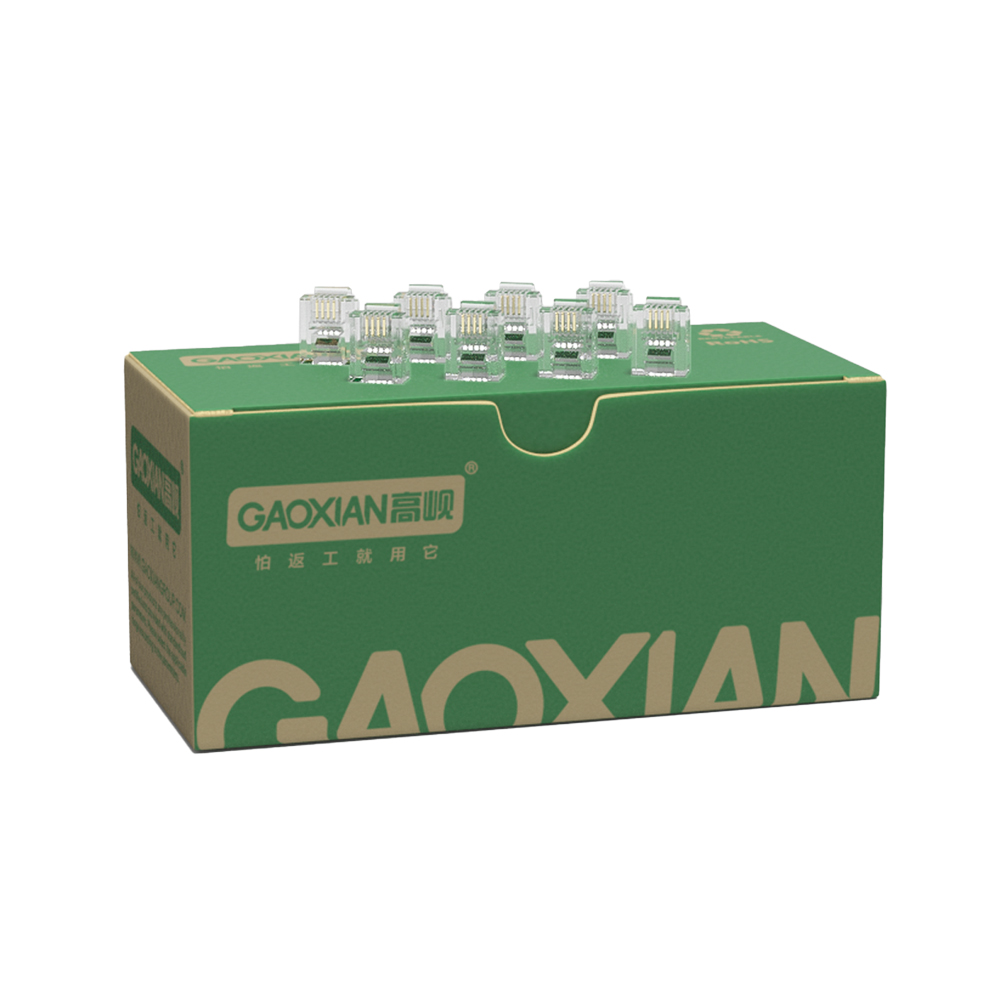

Packaging Detail
| Std. Pkg. Qty. | 100pcs |
Parameters
Product material: imported environment-friendly flame-retardant PC rubber, bronze insert;
Applicable system: voice system;
Implementation Standard: IEC 60603-7;
Suitable cable: 26-24AWG (0.40 mm-0.51 mm) , 1.0 mm aperture;
Process features: nickel plating insert, gold plating contact;
Product specifications: Needle 2 fork, 6P4C joint, one piece;
Number of times: ≥1000 times, shrapnel bending: ≥15 times;
Temperature: -20 ~ 75 °C;
Wiring standard: 568A/568B standard
Quality Requirements: Fluke channel test;
Quality Assurance: 25-year warranty.
Made to be perfect

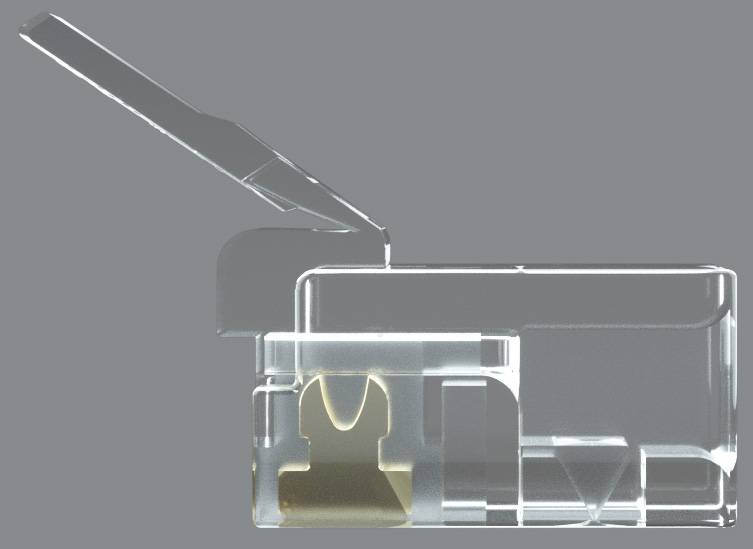

4 contacts embedded height must be kept consistent, during the construction of compression, crystal head can make fork and network wire core contact well, to ensure the whole chain, the transmission performance.

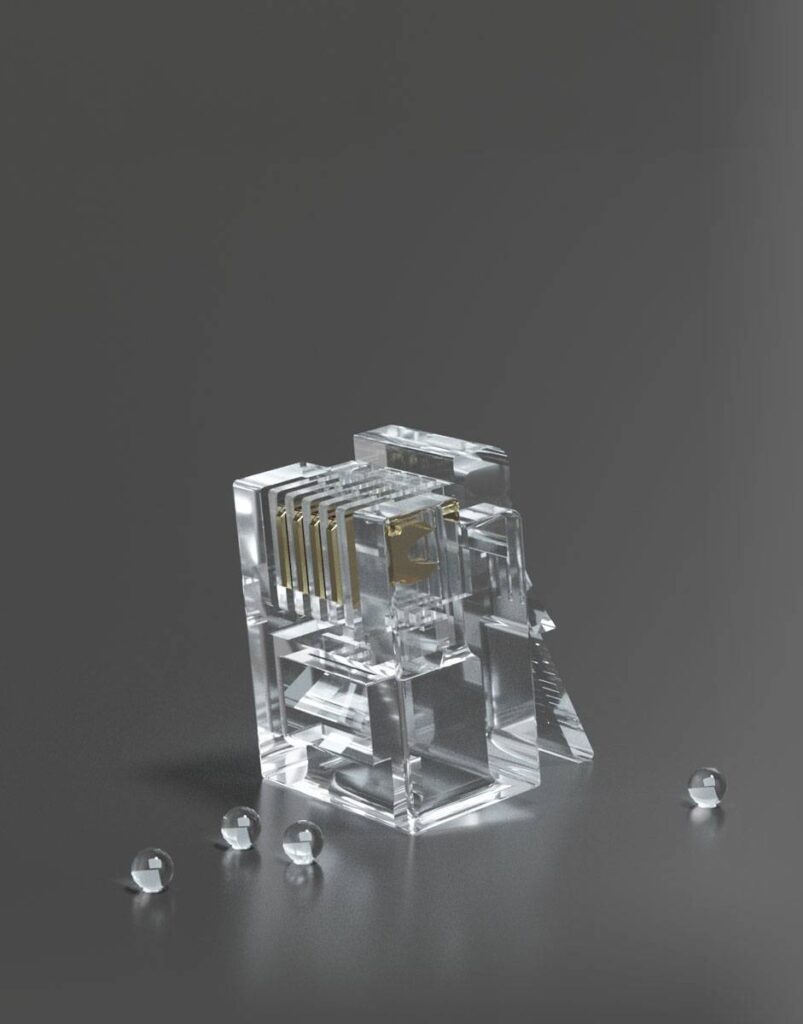

RJ11
24~26AWG
POLYCARBONATE
BRAND NEW MATERIAL
PLUG
