GX-GJAFJV-SC/SC-B1.3-03
Overview

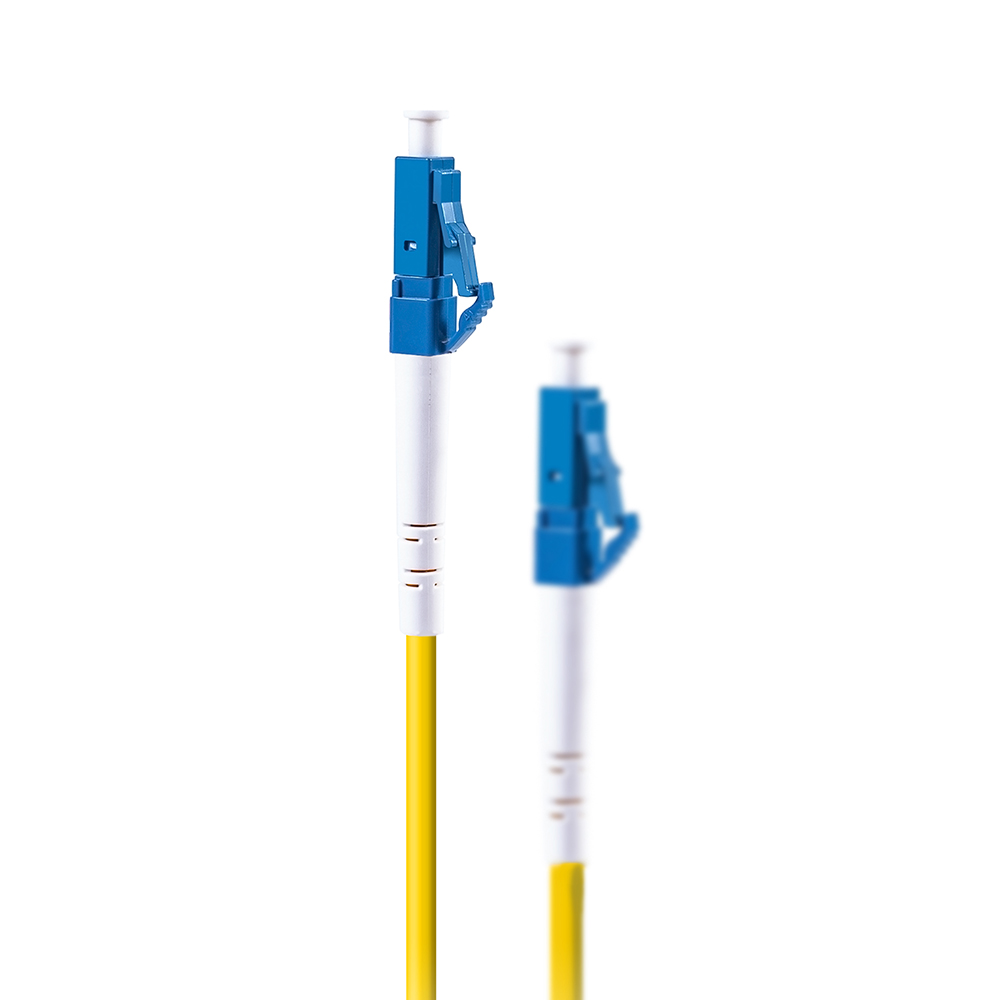

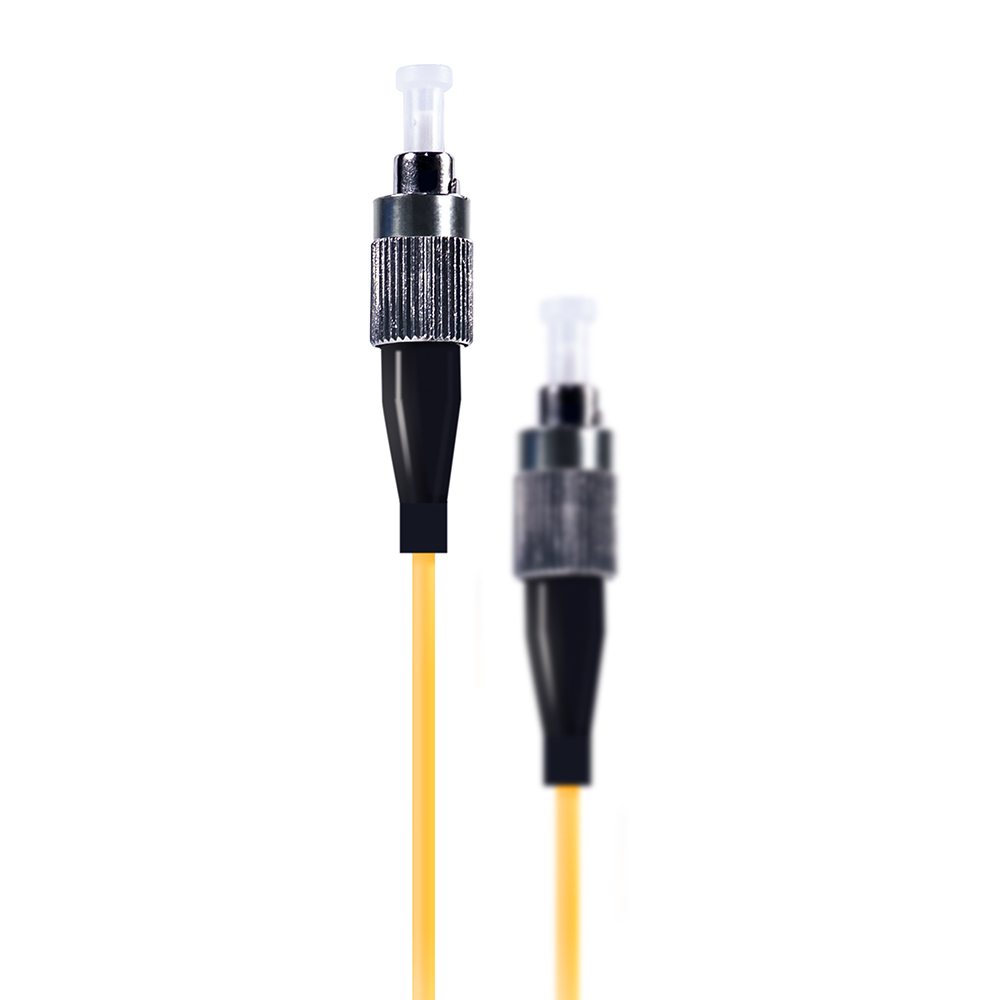

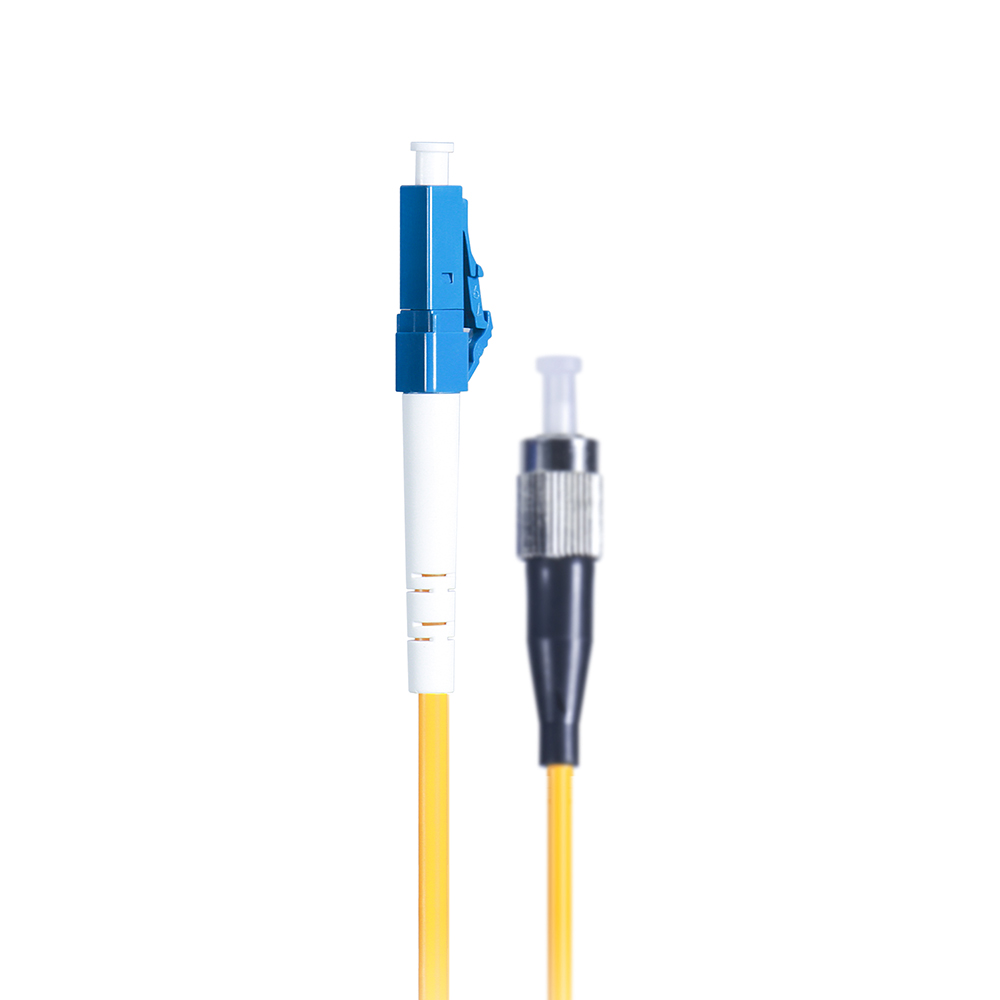

Multiple Options for optical fiber patch cord, SC/SC, LC/LC, FC/FC, FC/LC
Description
Optical Fiber Patch cord, SC/SC, LC/LC, FC/FC, FC/LC
Implementation Standards
YD/T 1258.2-2009，YD/T 926.3-2009
Quality Warranty
5 years warranty
Specifications
| Model no. | GX-GJAFJV-SC/SC(LC/LC,FC/FC,FC/LC)-B1.3-03 |
| Product Type | Optical Fiber Patch Cord |
| Material | Zirconia Ceramic Ferrule, Environmentally Friendly Flame Retardant PBT Plastic Shell, Flame Retardant PC Dust Cap, B1.3 Fiber Core, Flame Retardant PVC Outer Sheath |
| Flame Retardancy Level | OFNR Level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Fiber Diameter | 9μm/125±1μm, Cable Outer Diameter: 3.0mm, Fiber Length: 3 meters |
| Execution Standard | YD/T 1258.2-2009, YD/T 926.3-2009 |
| Interface Type | SC/SC,LC/LC,FC/FC,FC/LC |
| Mechanical Durability | >1000 times |
| Operating Temperature | -20~70°C |
| Quality Warranty | 5 years Warranty |
Packaging Detail
| Std. Qty | 1 pcs |
