GX-PDT229

Overview

This punch-down tool is suitable for low-voltage construction, capable of terminating modules, and patch panels. It primarily secures the wire core into the corresponding IDC slots of the module; the IDC slots can penetrate the PE insulation, ensuring tight contact between the IDC and the copper core.

Material

TPE soft rubber; PP skeleton; ABS case;

Implementation Standards

GB/T 12672-2009、GB/T 2100-2002

Quality Warranty

1 year warranty

Specifications

Model No.GX-PDT229
Product TypePunch-down Tool
AWG Range22~26AWG
Handle MaterialABS+PP+TPE
Blade Material40Cr
Standards ComplianceGB/T 12672-2009、GB/T 2100-2002
Quality Warranty1 year warranty

Packaging Detail

Std. Pkg. Qty1
Size140mm*32mm*35mm

Functions

  1. Termination Function
    Using the blade on the network punch-down tool, the wire core is secured into the IDC slots on the module. A clicking sound indicates that the wire core has been successfully terminated.
  2. Cutting Function
    The termination process uses the blade-end of the punch-down tool. During termination, the blade, aided by the spring's impact force and action, cuts off the excess wire core.

Product Maintance

  1. Upon unpacking, check if the respective parts of the product have been applied with anti-rust oil.
  2. Try to avoid exposing the tool to liquids (sweat, water, beverages, etc.) during use.
  3. When working at heights, make an effort to protect the tool from falling.
  4. If possible, apply anti-rust oil to the tool regularly.
  5. After using the tool, it should be stored in a protective environment such as a toolbox.
  6. The blade surface is treated for rust prevention, but it is not 100% rust-proof; maintenance is still necessary.

Redesigned Spring

100% success

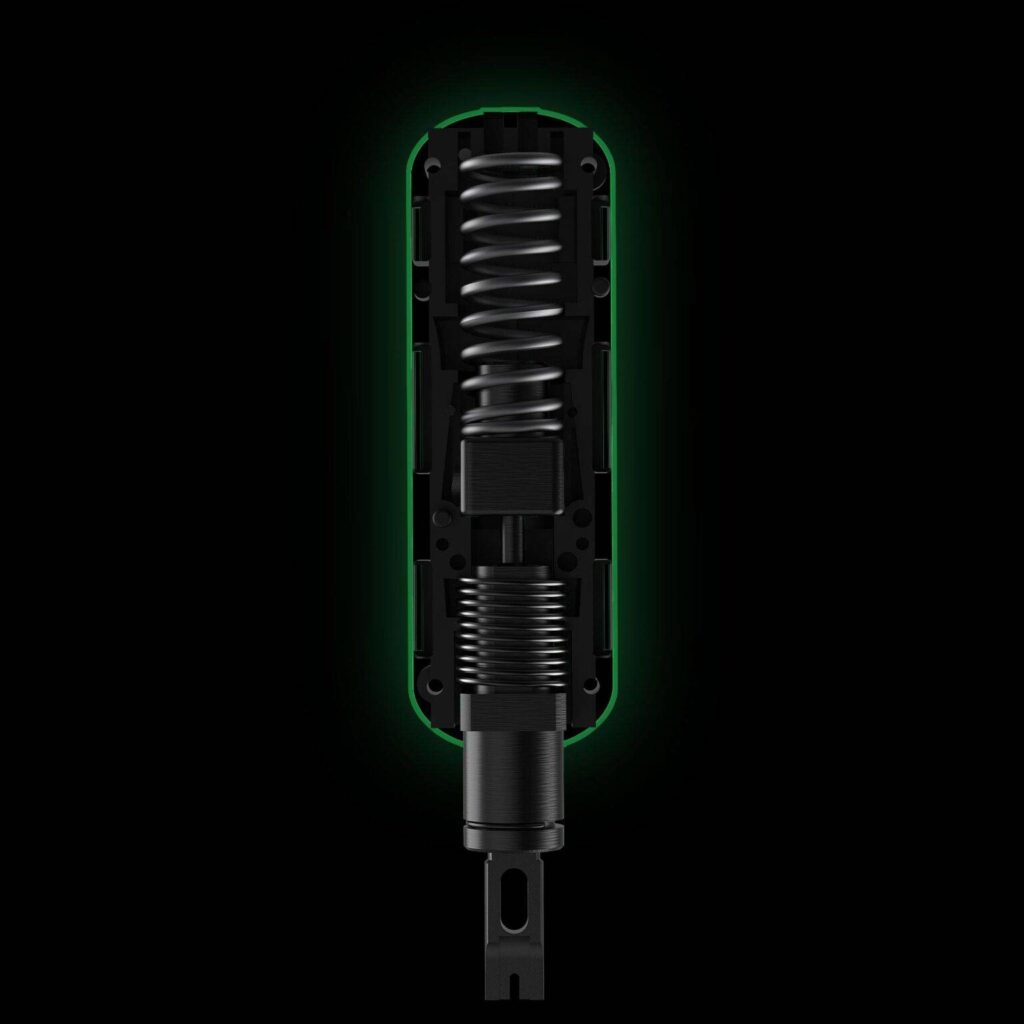

The internal transmission principle is multi-group compression spring transmission mechanism, which provides sufficient impact force and ensures the line hitting in place.

Spring coefficient and spring force are strictly tested to ensure the impact of the premise

The hand feel is not ordinary

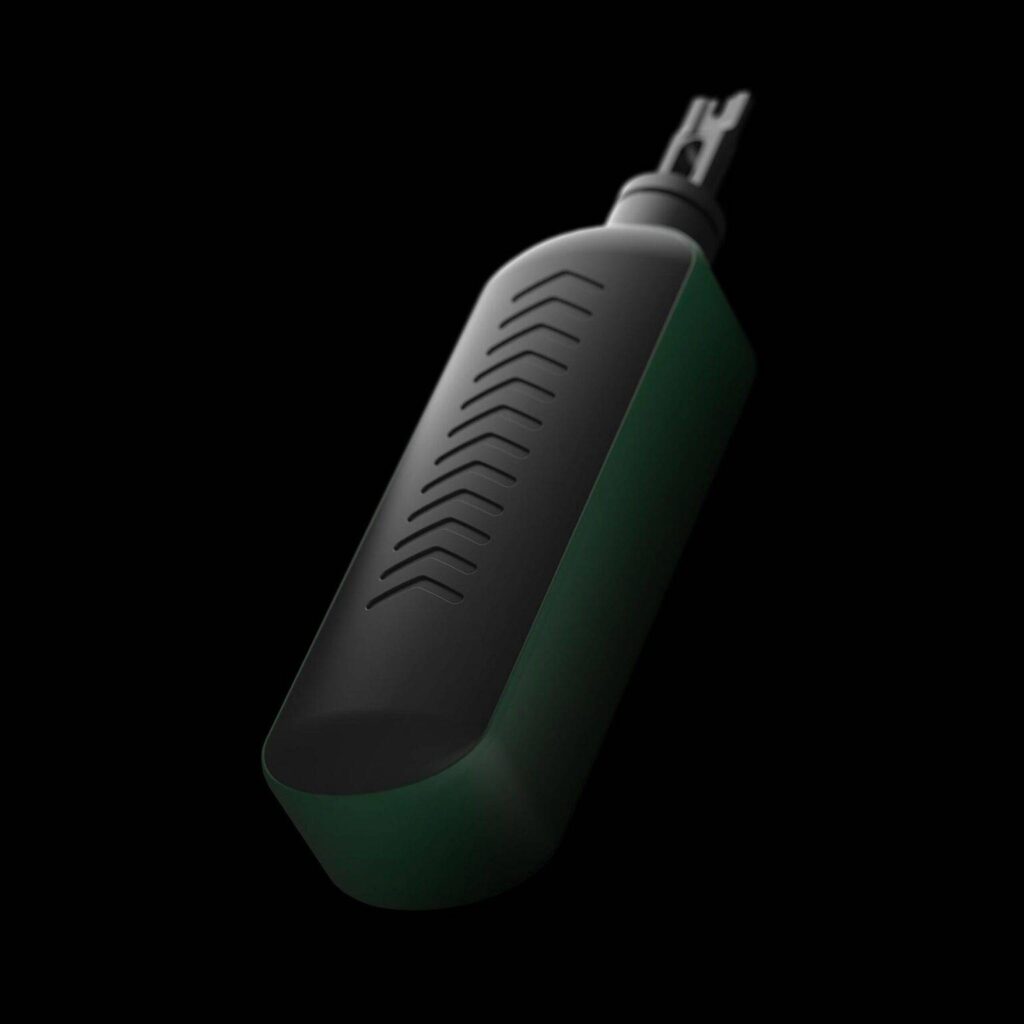

Three-layer structure, the main shell for ABS (hard rubber) , the use of PP + TPE combination, TPE for soft rubber, not only has a greater friction, but also has a comfortable hand grip. Good stitching, no hand grinding, high efficiency.

The tail uses the ARC structure, no matter how you grip is comfortable feel.

Cut or not? Easy to disassemble

Rotate the replacethe blade

The internal transmission principle is multi-group compression spring transmission mechanism, which provides sufficient impact force and ensures the line hitting in place.

Spring coefficient and spring force are strictly tested to ensure the impact of the premise

Dual Blade Function

Powder metallurgy process..

Soft Rubber Protective Shell....

Recoil Structure
