GX-FL216 2.0
Overview

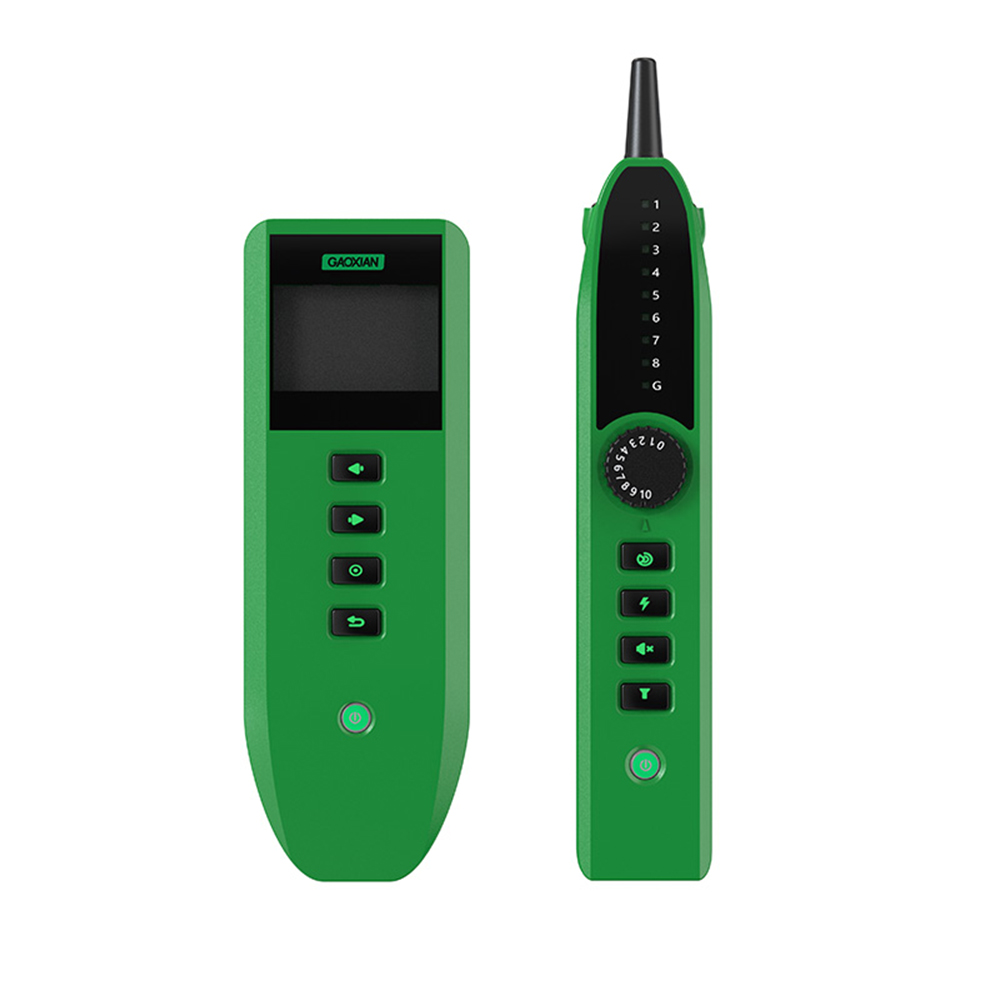

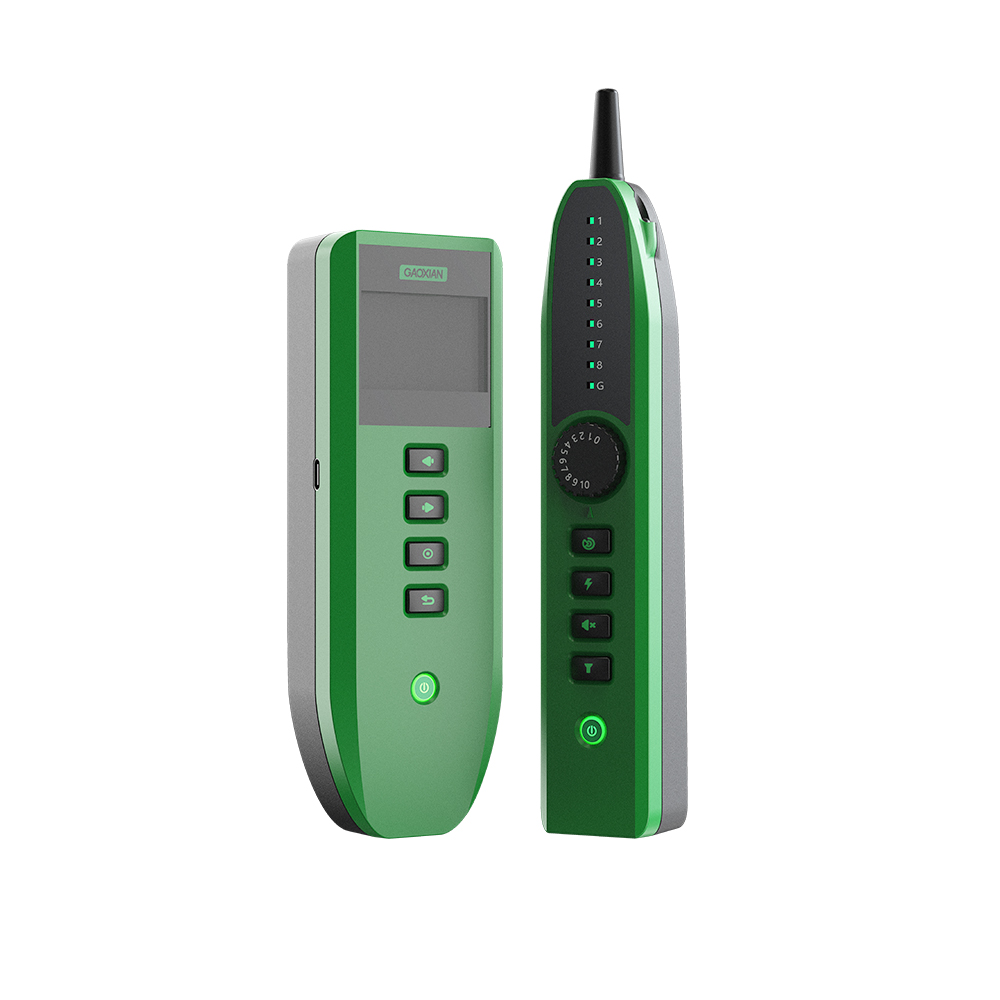

The GX-FL216 2.0 Versatile Wire Tracker, developed by Guangdong Gaohongmei Xian Information Technology Co., Ltd, designed for use in wiring scenarios such as networking and telephone cables. The wire tracking function has been optimized for specific situations including shielded cables, mixed shielded and unshielded links, and connections to PoE switches. This product features integrated wire tracing and pairing, length testing, port flashing, and PoE testing, making it highly practical for use. The main unit is equipped with a screen for visual display of test results, and the auxiliary unit is equipped with signal lights (which also function as wire sequence indicators), making the tracing and identification results visible. This device can meet most of the usage requirements in low-voltage electrical construction and is applicable in a variety of scenarios.
Function
Integration of Wire Tracking & Checking; Length Testing; Port Flashing; PoE Testing; Electroprobe
Implementation Standards
GB/T 12672-2009、GB 4588.3-2002
Quality Warranty
1 year warranty
Specifications
| Model no. | GX-FL216 2.0 |
| Product Type | Versatile Wire Tracker |
| Shell Material | ABS, gold and nickle plating of phosphor bronze, chargable Li battery |
| Function | Integration of Wire Tracking & Checking; Length Testing; Port Flashing; PoE Testing; Electroprobe |
| Battery Capacity | Main unit:1200mAh ; Auxiliary unit: 1000mAh |
| Safety | Standard PoE 60V proof |
| Plug type | RJ45/RJ11 |
| Charging interface | Type-C |
| Standard Compliance | GB/T 12672-2009、GB 4588.3-2002 |
| Quality warranty | 1 year warranty |
Packaging Detail
| Std. Pkg.Qty. | 1 |
| Size | 215.5mm*60mm*28mm |

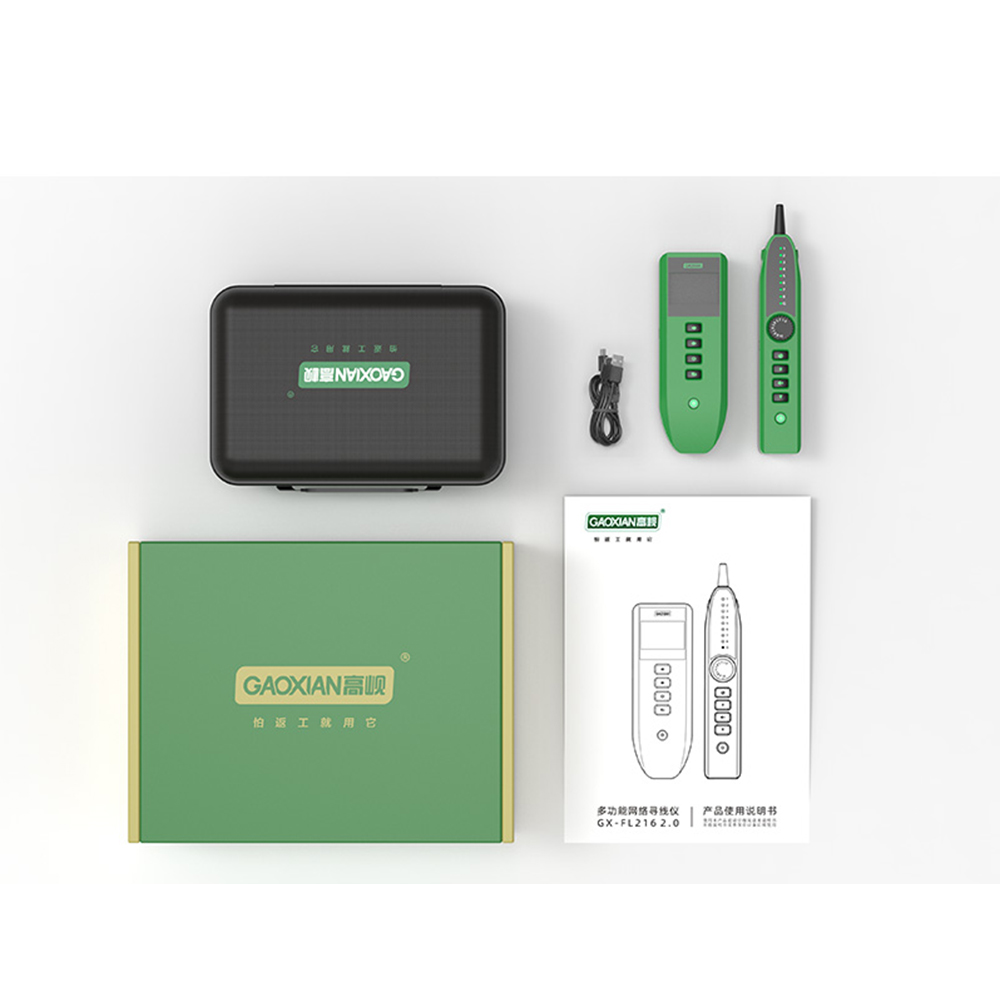

| Toolit | Main Unit * 1 Auxiliary Unit * 1 Alligator Clip * 1 User Manual * 1 USB to Type-C Charging Cable * 1 Warranty Card * 1 |
Hear from users
What are the main functions of this device?
Answer: This product mainly features integrated wire tracing & pairing, length testing, port flashing, PoE testing, and electroprobe.
What type of charging port does this device use, and how long can it typically work?
Answer: This device uses a Type-C charging port. Considering the higher power consumption of the tracing function, it can operate continuously for about 20 hours.
Made to be perfect
Can this device perform wire sequence pairing when connected to switches, routers, surveillance cameras, etc.?
Answer: No, because the main unit needs to collect the line signal from the auxiliary unit and make the judgment to display the right results. The interference from devices like switches and routers disrupts judgment logic, making wrong results for sequence checking in such cases.
Can this device trace and identify wires in complex links involving both shielded and unshielded cables?
Answer: Yes, this device can trace and identify wires in complex links involving both shielded and combined shielded/unshielded cables.
PoE Test
Electroprobe
Integration of Wire Tracking & Checking…
Length Test
