ZoomDetails

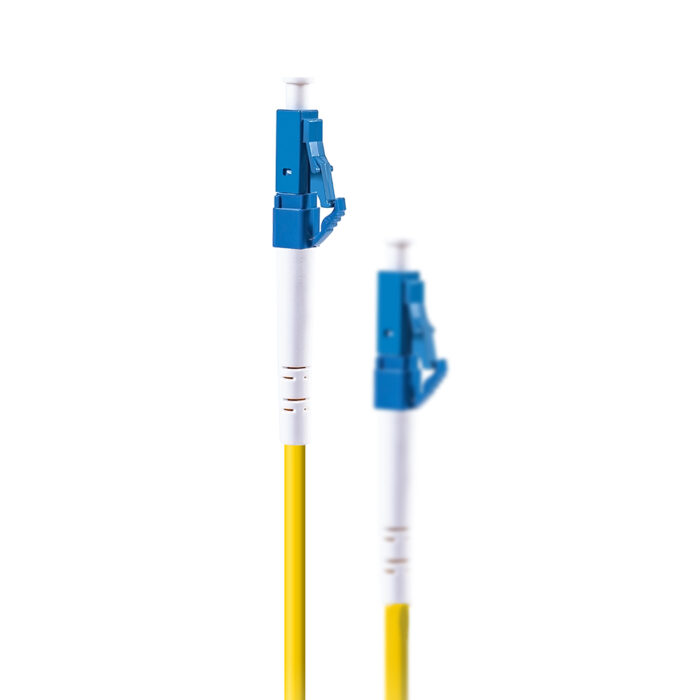

Optical Fiber Patch Cord

Fiber System

GX-GJAFJV-SC/SC-B1.3-03 Overview Description Implementation Standards Quality Warranty Specifications Model no. GX-GJAFJV-SC/SC(LC/LC,FC/FC,FC/LC)-B1.3-03 Product Type Optical Fiber Patch Cord Material Zirconia Ceramic Ferrule, Environmentally Friendly Flame Retardant PBT Plastic Shell, Flame Retardant PC Dust Cap, B1.3 Fiber Core, Flame Retardant PVC Outer Sheath Flame Retardancy Level OFNR Level, IEC 60332-1-2, GB/T 18380.12-2008 Fiber Diameter 9μm/125±1μm, Cable Outer…

ZoomDetails

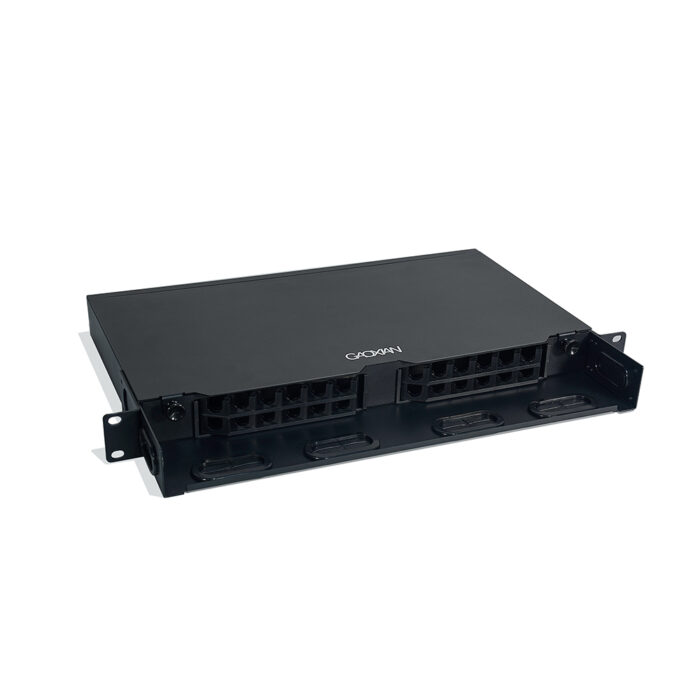

Optical Fiber Patch Panel

Fiber System

GX-GPX-24 Overview Description Implementation Standards Quality Warranty Specifications Model no. GX-GPX-24 Product Type Optical Fiber Patch Panel Material Flame Retardant ABS Fusion Tray, Cold-Rolled Steel Plate. Execution Standard YD/T 778-2011 Interface Type FC, SC, LC, Interface Quantity: 24 Ports Product Dimensions Length 19 inches (482.6mm), Height 1U (44.4mm), Depth 310mm. Operating Temperature 45~80°C Quality Assurance…

ZoomDetails

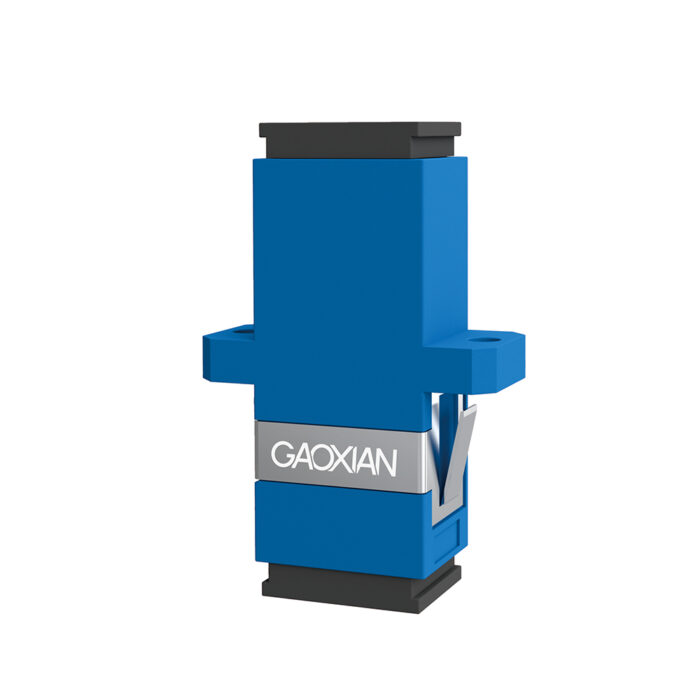

Optical Fiber Adapter

Fiber System

GX-SPQ-FC(SC,LC)/UPC Overview Description Implementation Standards Product Package Specifications Model no. GX-SPQ-FC(SC,LC)/UPC Product Type Optical Fiber Adapter Material Zirconia Ceramic Ferrule,Flame Retardant PVC Plastic Dust Cap, Zinc Alloy Shell, Convex Endface Execution Standard YD/T 1272.4-2007, YD/T 926.3-2009 Connector Type FC/SC/LC Insertion Loss 0.2dB Repeatability ≤0.1dB Mechanical Durability >1000 times Operating Temperature -40~75°C Flame Retardancy Level  UL94V0…
