GXDH-M
Overview

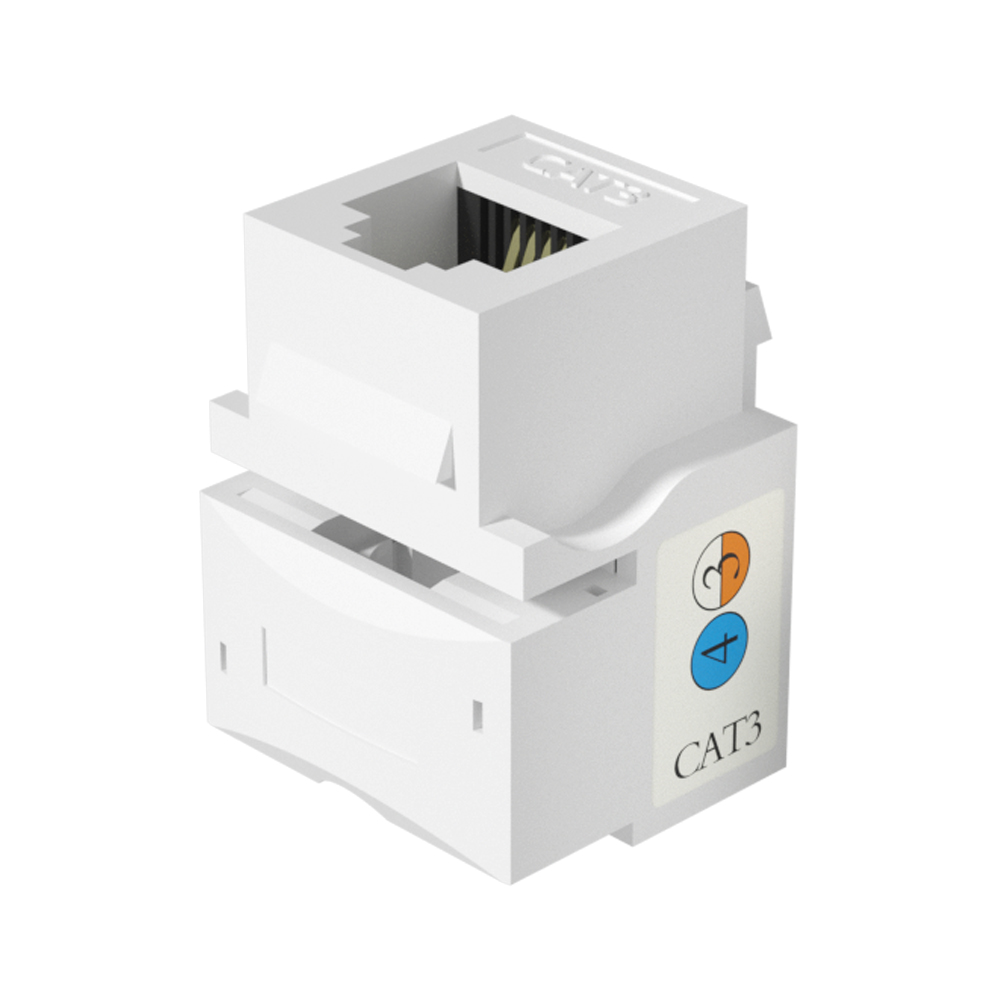

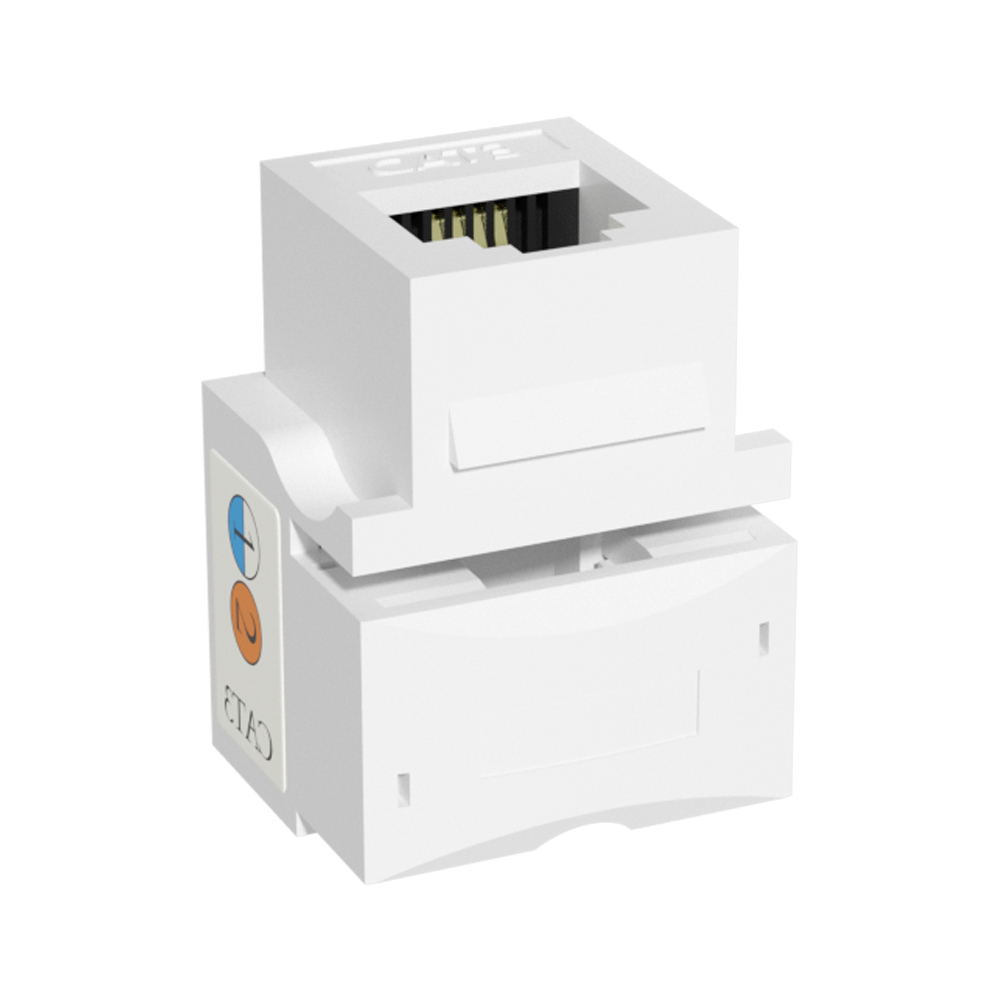

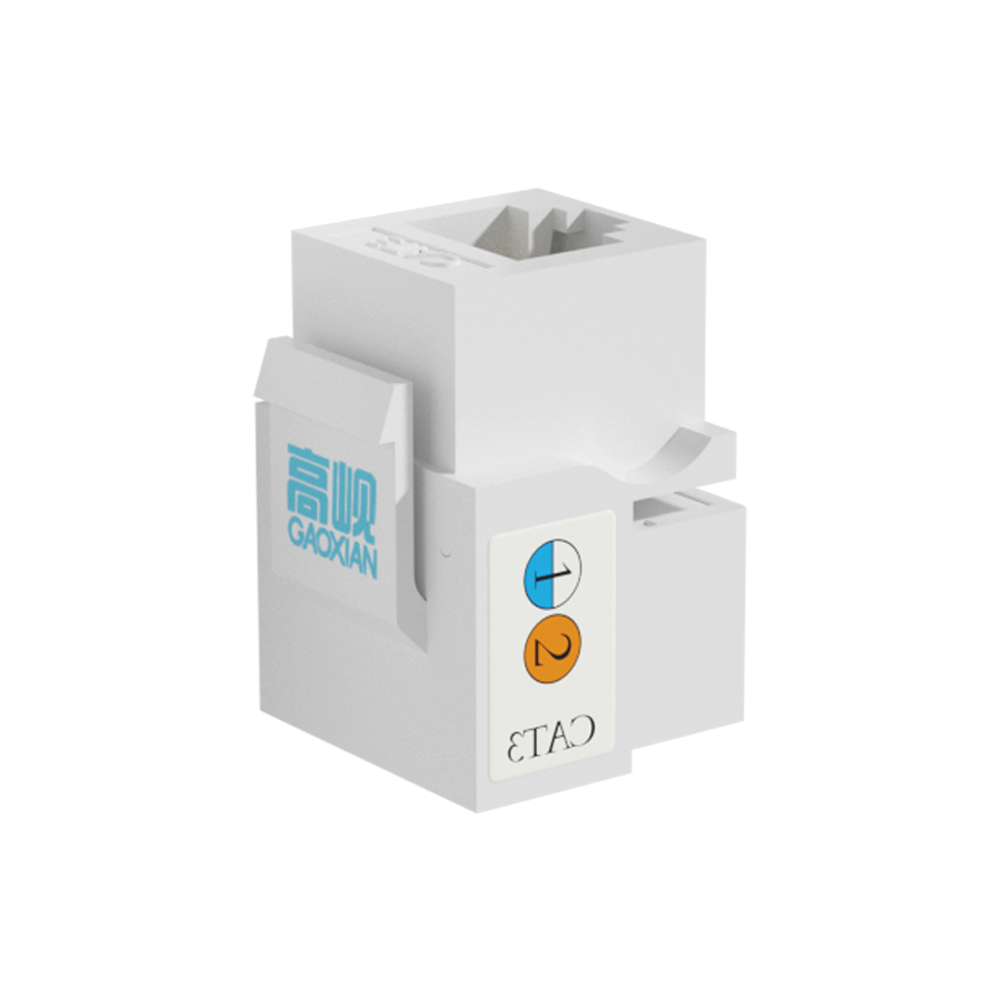

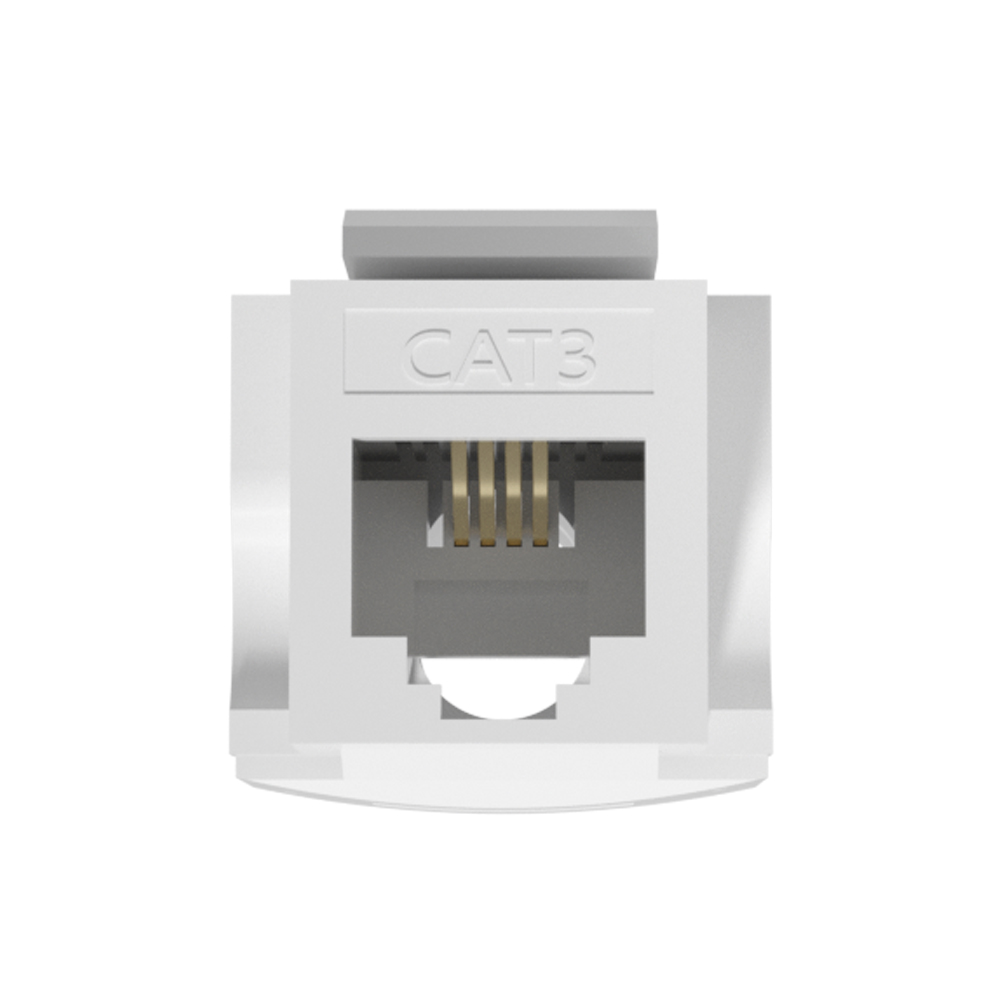

RJ11 UTP jack for voice system.
Material
Phosphor Bronze, Eco-friendly Flame Retardant Polycarbonate
Implementation Standards
ANSI/TIA 568 C.2, ISO/IEC 11801-1:2008, YD/T 926.3-2009
Quality Warranty
15 years warranty
Specifications
| Product Type | RJ11 Jack |
| Performance Level | RJ11 |
| Applicable System | Voice System |
| Shield Type | UTP |
| Wiring | T568B |
| AWG | 26AWG-22AWG |
| Implementation Standards | ANSI/TIA 568 C.2, ISO/IEC 11801-1:2008, YD/T 926.3-2009 |
| Material | Phosphor Bronze, Eco-friendly Flame Retardant PC Resin |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Operating Temperature(℃) | -20~75℃ |
| Plug Materials | Polycarbonate |
| Insertion and Extraction Cycles | ≥1000 times, Termination Cycles: ≥250 times |
| Min.Plug Retention Force | 50N |
| Quality Warranty | 15 years warranty |
Packaging Detail
| Std. Qty | 1 pcs |
