ZoomDetails

Cat6A shielded Patch Panel

Copper System, Patch Panel

GXCAT6A-24FP Overview Description Implementation Standards Quality Warranty Specifications Model no. GXCAT6A-24FP Product Type Patch Panel Category 6A Shield Type Shield Implementation Standards ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 AWG 22~26AWG Product Dimension Height:1U, Length:19U Ports 24 Number of Plug Insertion & Termination Cycles Plug>1000, termination>250 Min.Dielectric Withstand Voltage(contact to contact) 1000V DC or AC peak Compatibility Backwards…

ZoomDetails

Cat5e UTP Patch Panel

Copper System, Patch Panel

GXCAT5e-24UP 3.0 Overview Description Implementation Standards Quality Warranty Specifications Model no. GXCAT5e-24UP 3.0 Product Type Patch Panel Category Cat5e Shield Type Unshield Implementation Standards ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 AWG 22~26AWG Product Dimension Height:1U, Length:19U Ports 24 Number of Plug Insertion & Termination Cycles Plug>1000, termination>250 Min.Dielectric Withstand Voltage(contact to contact) 1000V DC or AC peak…

ZoomDetails

Cat6 UTP Patch Panel

Copper System, Patch Panel

GXCAT6-24UP 3.0 Overview Description Implementation Standards Product Package Specifications Model no. GXCAT6-24UP 3.0 Product Type Patch Panel Category Cat6 Shield Type Unshield Implementation Standards ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 AWG 22~26AWG Product Dimension Height:1U, Length:19U Ports 24 Number of Plug Insertion & Termination Cycles Plug>1000, termination>250 Min.Dielectric Withstand Voltage(contact to contact) 1000V DC or AC peak…

ZoomDetails

Cat6 shielded Patch Panel

Copper System, Patch Panel

GXCAT6-24FP Overview Description Implementation Standards Quality Warranty Specifications Model no. GXCAT6-24FP Product Type Patch Panel Category Cat6 Shield Type FTP Implementation Standards ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，IEC 60603-7-5，YD/T 926.3-2009 AWG 22~26AWG Product Dimension Height:1U, Length:19U Ports 24 Number of Plug Insertion & Termination Cycles Plug>1000, termination>250 Min.Dielectric Withstand Voltage(contact to contact) 1000V DC or AC peak Compatibility…

ZoomDetails

Cat6 UTP Patch Panel(GC series)

Copper System, Patch Panel

GXCAT6-24UP-GC Overview Description Implementation Standards Quality Warranty Specifications Model no. GXCAT6-24UP-GC Product Type Patch Panel Category Cat6 Shield Type Unshield Implementation Standards ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 AWG 22~26AWG Product Dimension Height:1U, Length:19U Ports 24 Number of Plug Insertion & Termination Cycles Plug>1000, termination>250 Min.Dielectric Withstand Voltage(contact to contact) 1000V DC or AC peak Compatibility Backwards…

ZoomDetails

Cat6A sheilded Modular Jack

Copper System, Jack Module

GXCAT6A-FM Overview Description Implementation Standards Quality Assurance Specifications Product Type Modular Jack Performance Level Category 6A Shield Type FTP Wiring T568B Conductor Gauge (AWG) 22~26AWG Implementation Standards ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 Applications support 10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) Min.Dielectric Withstand Voltage(contact to contact)  1000V DC or AC…

ZoomDetails

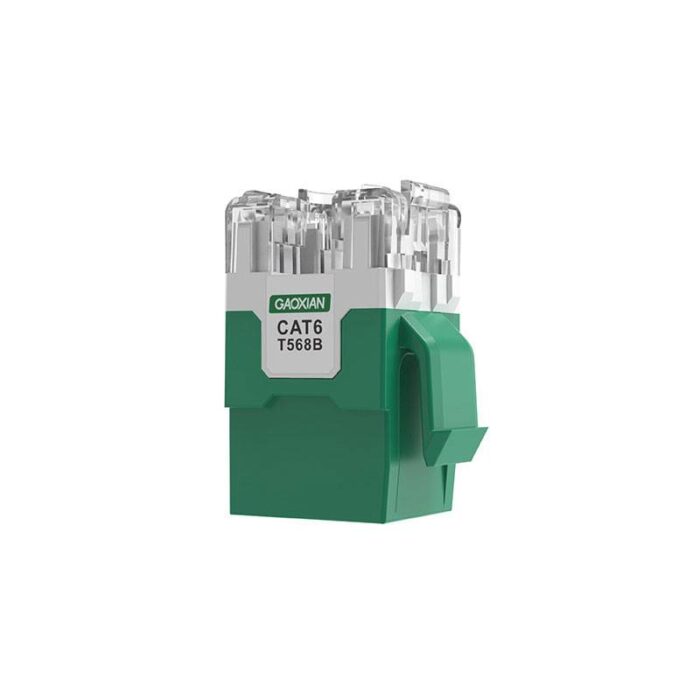

Cat6 UTP Keystone Jack

Copper System, Jack Module

GXCAT6-UM 3.0 Overview Description Implementation Standards Quality Warranty Specifications Product Type Modular Jack Performance Level Category 6 Shield Type UTP Wiring T568B Conductor Gauge (AWG) 22~26AWG Implementation Standards ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 Applications support 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) Min.Dielectric Withstand Voltage(contact to contact)  1000V DC or AC…

ZoomDetails

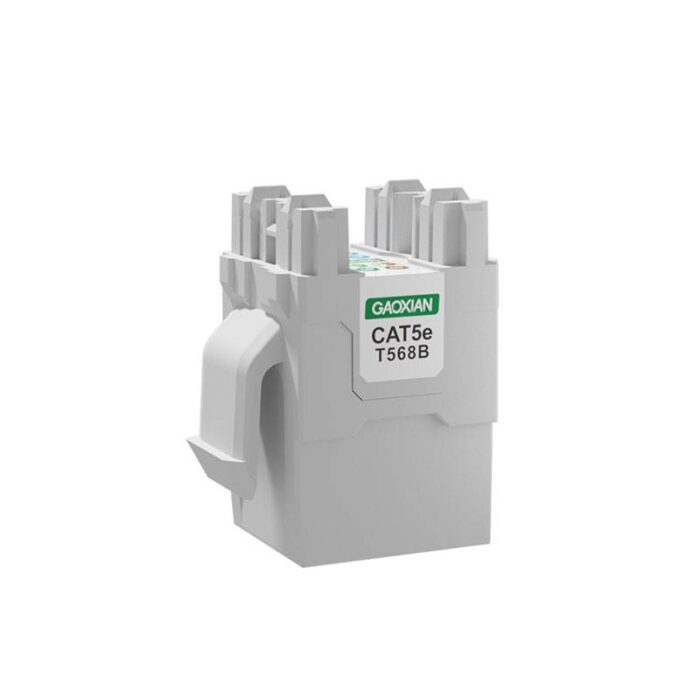

Cat5e UTP Keystone Jack

Copper System, Jack Module

GXCAT5e-UM 3.0 Overview Description Implementation Standards Quality Warranty Specifications Model no. GXCAT5e-UM 3.0 Product Type Modular Jack Performance Level Category 5e Shield Type UTP Wiring T568B Conductor Gauge (AWG) 22~26AWG Implementation Standards ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 Applications support 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) Min.Dielectric Withstand Voltage(contact to contact)…

ZoomDetails

Cat5e UTP Keystone Jack(tool-free)

Copper System, Jack Module

GXCAT5e-UM-MD Overview Description Implementation Standards Quality Assurance Specifications Model no. GXCAT5e-UM-MD Product Type Modular Jack(tool-free) Performance Level Category 5e Shield Type UTP Wiring T568B Conductor Gauge (AWG) 22~26AWG Implementation Standards ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 Applications support 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) Min.Dielectric Withstand Voltage(contact to contact)  1000V DC…

ZoomDetails

Cat6 UTP Keystone Jack(tool-free)

Copper System, Jack Module

GXCAT6-UM-MD Overview Description Implementation Standards Quality Assurance Specifications Product Type Modular Jack(tool-free) Performance Level Category 6 Shield Type UTP Wiring T568B Conductor Gauge (AWG) 22~26AWG Implementation Standards ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 Applications support 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) Min.Dielectric Withstand Voltage(contact to contact)  1000V DC or AC peak…
