GXCAT6A-RJ45FS
Overview

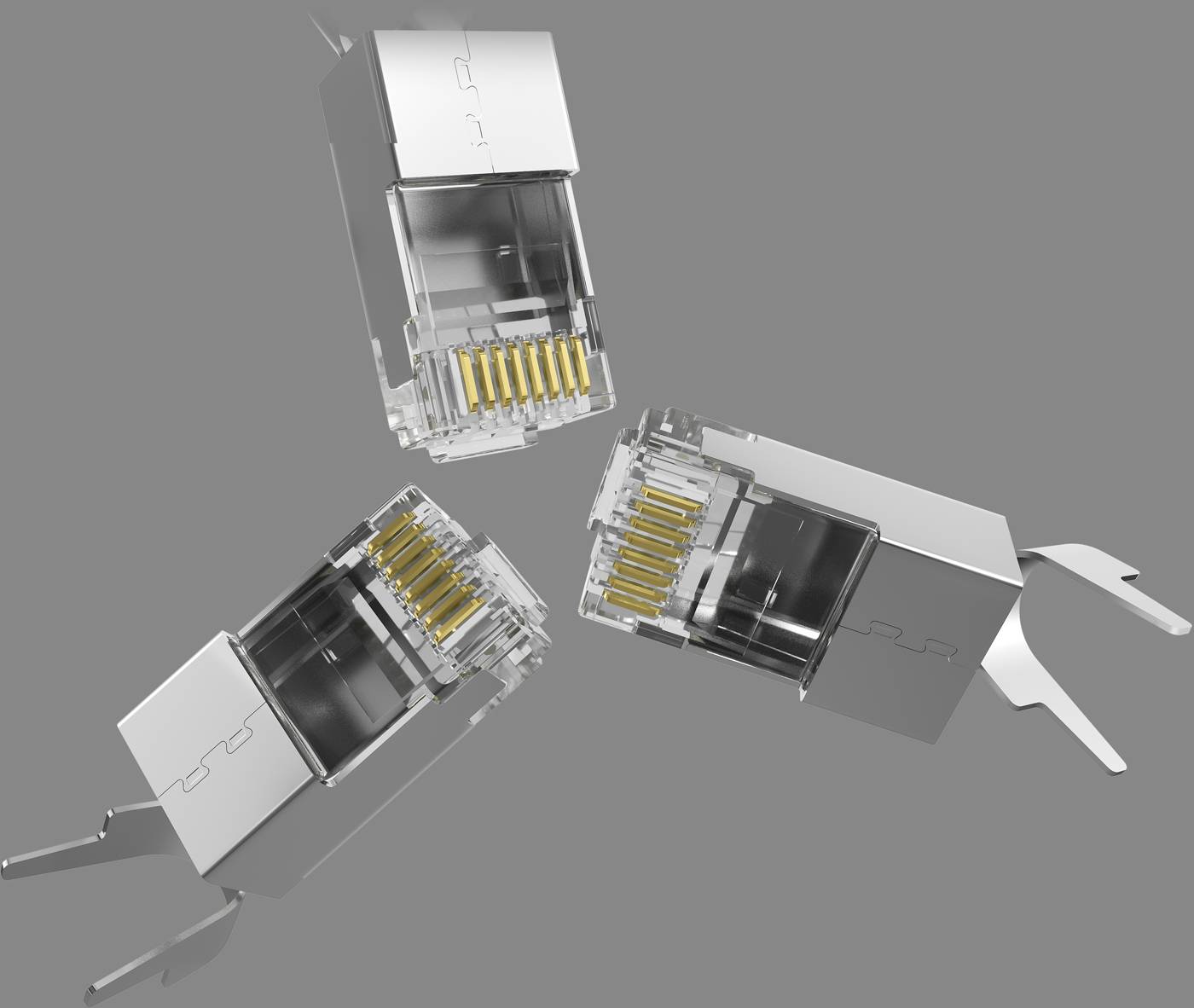

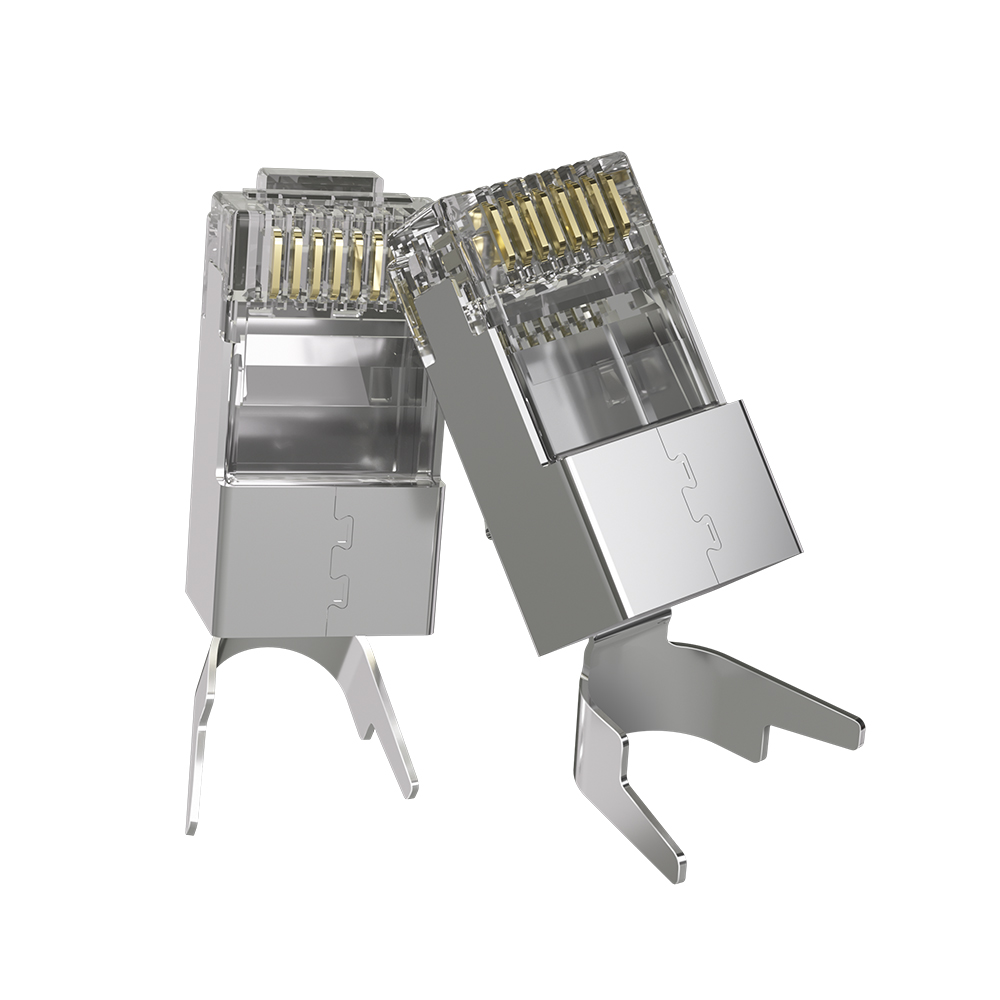

Cat6A plug 8p8c, shielded. Made of phosphor bronze, flame-retardant polycarbonate, nickel-plated brass shell
Description
Plug, Cat6A, Nickel-plated copper shell shielded, 50pcs,
Implementation Standards
IEC 60603-7，YD/T 926.3-2009
Quality Warranty
5 years warranty
Specifications
| Model no. | GXCAT6A-RJ45FS |
| Category Type | Cat 6A |
| Product Type | RJ45 Plug |
| Shield Type | Shielded, Nickel-plated copper shell |
| Body Material | Polycarbonate |
| Color | Transparent |
| Operating Temperature | -20~60 °C |
| Flame Resistance | UL94 V2 |
| Wiring | T568A/T568B |
| AWG | 23AWG (0.54mm~0.6mm) |
| Aperture Size | 1.45 mm |
| Min. Bending Times | 15 |
| Green | RoHS |
| QC Standard | Fluke Channel |
| Quality Warranty | 5 years warranty |
Packaging Detail
| Std. Pkg. Qty. | 50pcs |
Plug, we're the best
The best polycarbonate from Japan, featuring transparent ouglook & high mechanical performance.
We don't use any drainage opening material
For the best mechanical performance and transparent outlook, also comes with the higher bending performance.

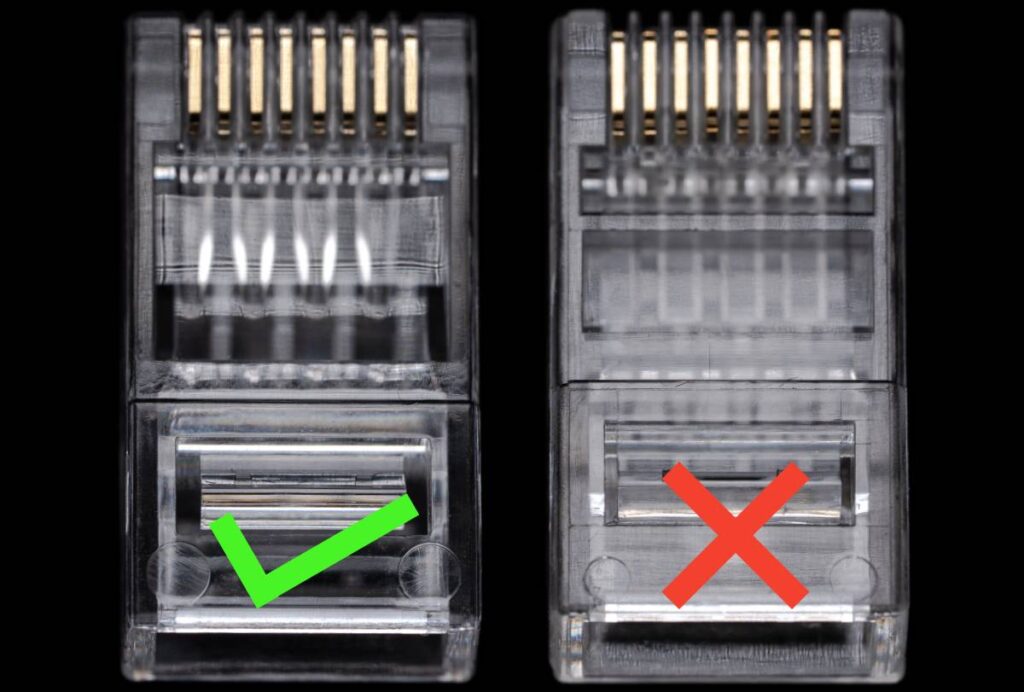

Mold Difference
Mold accuracy and injection molding machine injection speed and air pressure is not enough shortcomings:
There is shrinkage, bumpy, full of scratches, off the formation of bubbles, internal shell cracks
Low Return Loss
The contact surface is smooth
Lower return loss, higher transmission efficiency

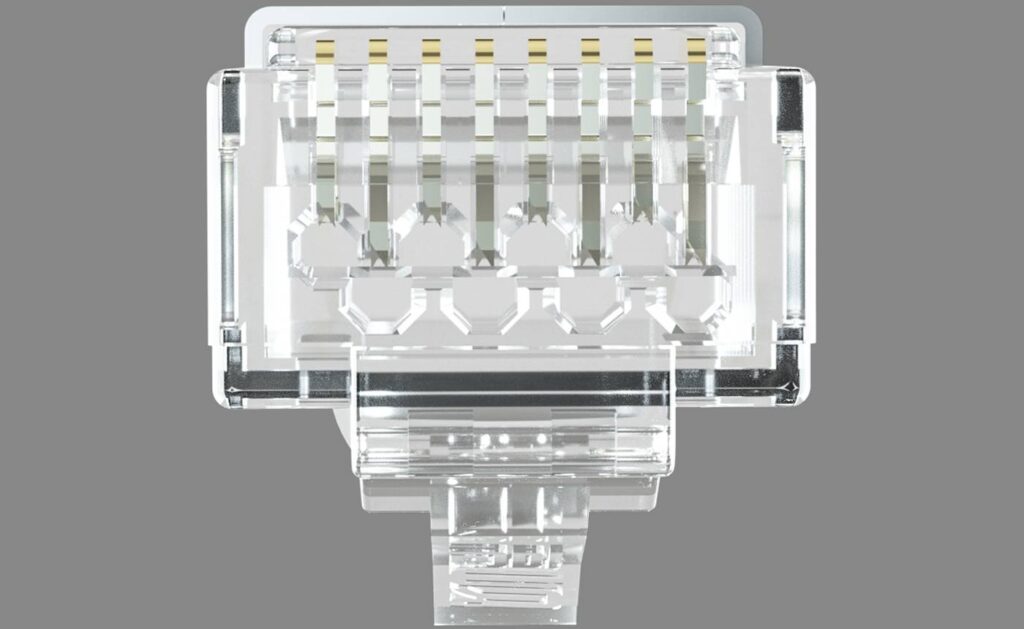

No Contact Loss
Contact slot and embedded height, determine whether the pretermination process will fail. In this regard, we on the fork embedded height of strict control, as long as higher than the embedded height will be removed, to eliminate the pin out of the problem.
Polycarbonate
Transparent
high mechanical performanmce…
RJ45
plug
