GXCAT5e-UT-BL
Overview
GAOXIAN Cat5e UTP exceeds all ANSI/TIA and ISO/IEC requirements. Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description
Patch cord, Copper, Category 5e, 4 Pair, Solid, FTP, 24 AWG, Yellow
Implementation Standards
ANSI/TIA 568 C.2，ISO/IEC 11801-1:2008，YD/T 926.3-2009
Product Package
0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m
Specifications
| Product Type | Patch Cord |
| Performance Level | Category 5e |
| Shield Type | UTP |
| Wiring | T568B |
| Nominal Jacket OD | |
| Conductor Gauge (AWG) | 24AWG 7*8, Standard tinned copper |
| Implementation Standards | ANSI/TIA 568 C.2，ISO/IEC 11801-1:2008，YD/T 926.3-2009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Insulation Resistance | 500 mΩ |
| Compatibility | Backwards to Cat5e |
| Current Rating(25℃) | 1.5A |
| Power over Ethernet | PoE & PoE+ |
| Surface Transfer Impedance | < 10mΩ/m(10MHz) |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Plug Materials | Polycarbonate |
| Plug Insertion Cycles | 1000 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Bend Radius | 50mm |
| Fluke Standard | Fluke Patch Cord test |
| Color | Blue |
| Quality Warranty | 5 years warranty |
Packaging Detail
| Std. Ctn. meter. | 0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m |
| Std. Qty | 1 pcs |
High Reliability
Whether it is a surveillance camera, or switch routers, the most feared is to plug in the jumper lamp does not light, which means that the link is not open, link no signal transmission. According to IEC standard, RJ45 connector plug-and-pull number not less than 750 times, and Gaoxian super-six shield jumper plug-and-pull not less than 1000 times, higher than the standard requirements. Fork nickel-plated gold-plated, not only a solid connection, close contact, but also anti-oxidation, wear resistance.

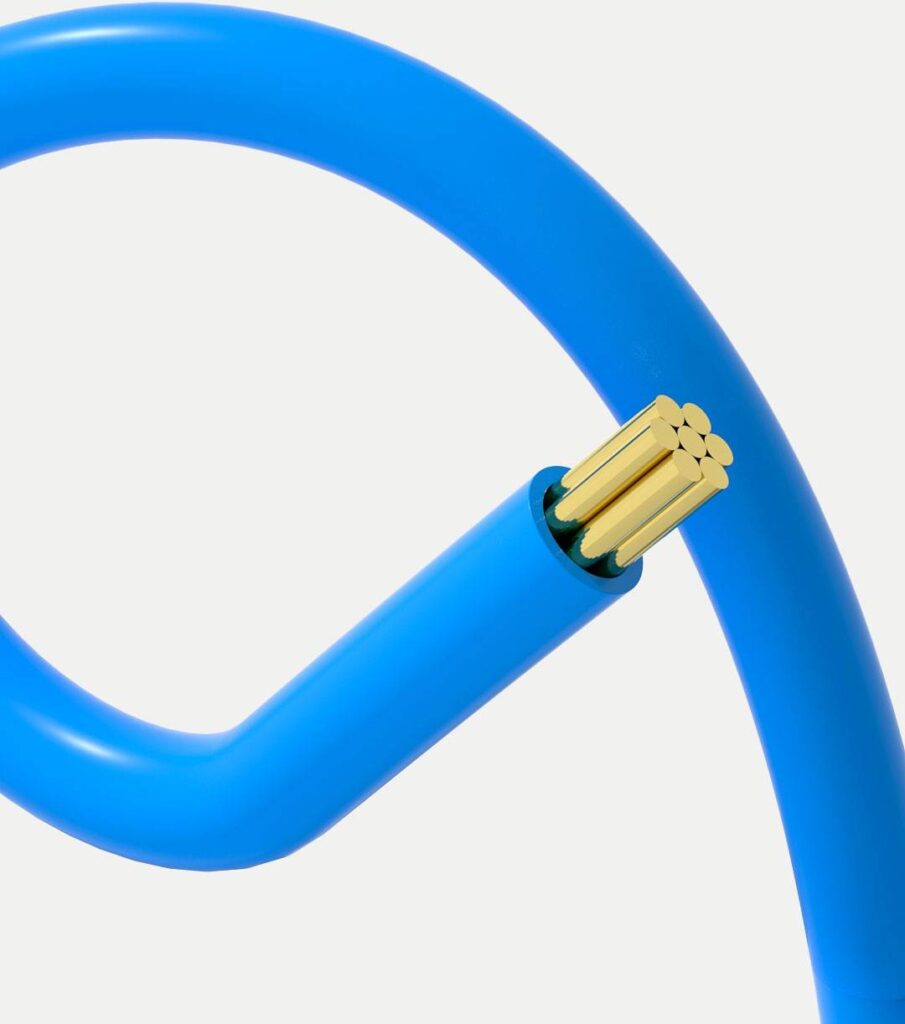

7*8 copper core
Soft & flexible
