GXCAT6-UM 3.0
Overview
GAOXIAN Cat6 UTP cable exceeds all ANSI/TIA and ISO/IEC requirements . Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description
Patch cord, Category 6, UTP, white&green, T568B
Implementation Standards
ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009
Quality Warranty
15 years warranty
Specifications
| Product Type | Modular Jack |
| Performance Level | Category 6 |
| Shield Type | UTP |
| Wiring | T568B |
| Conductor Gauge (AWG) | 22~26AWG |
| Implementation Standards | ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Compatibility | Backwards to Cat5e |
| Power over Ethernet | PoE(Type1/2/3/4) & PoE+ |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Green | RoHS |
| Number of Plug Insertion & Termination Cycles | Plug>1000, termination>250 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Fluke Standard | Fluke permanent link test |
| Quality Warranty | 15 years warranty |
Packaging Detail
| Std. Qty | 1 pcs |

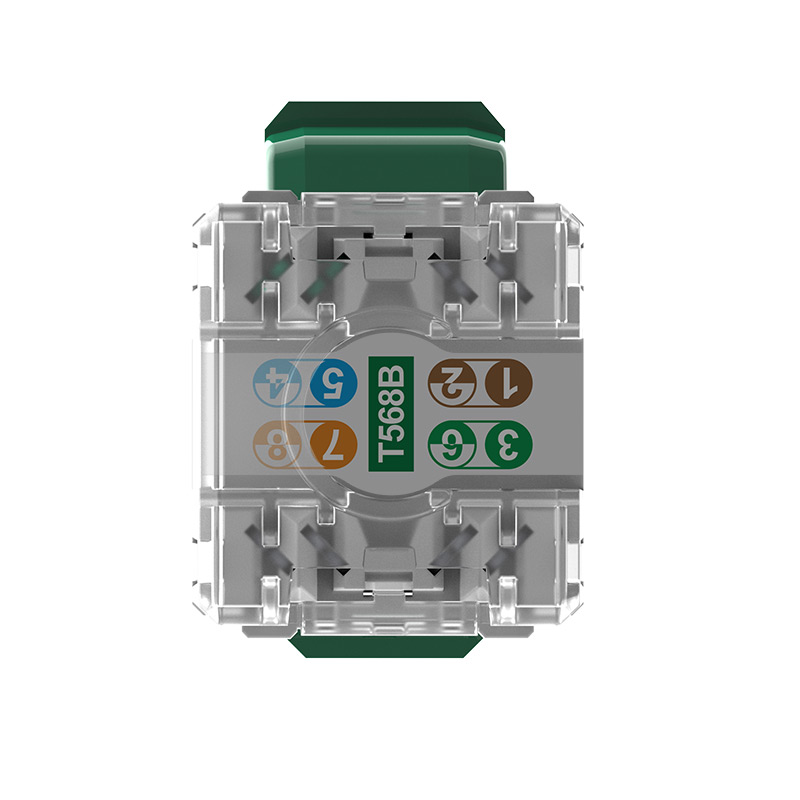

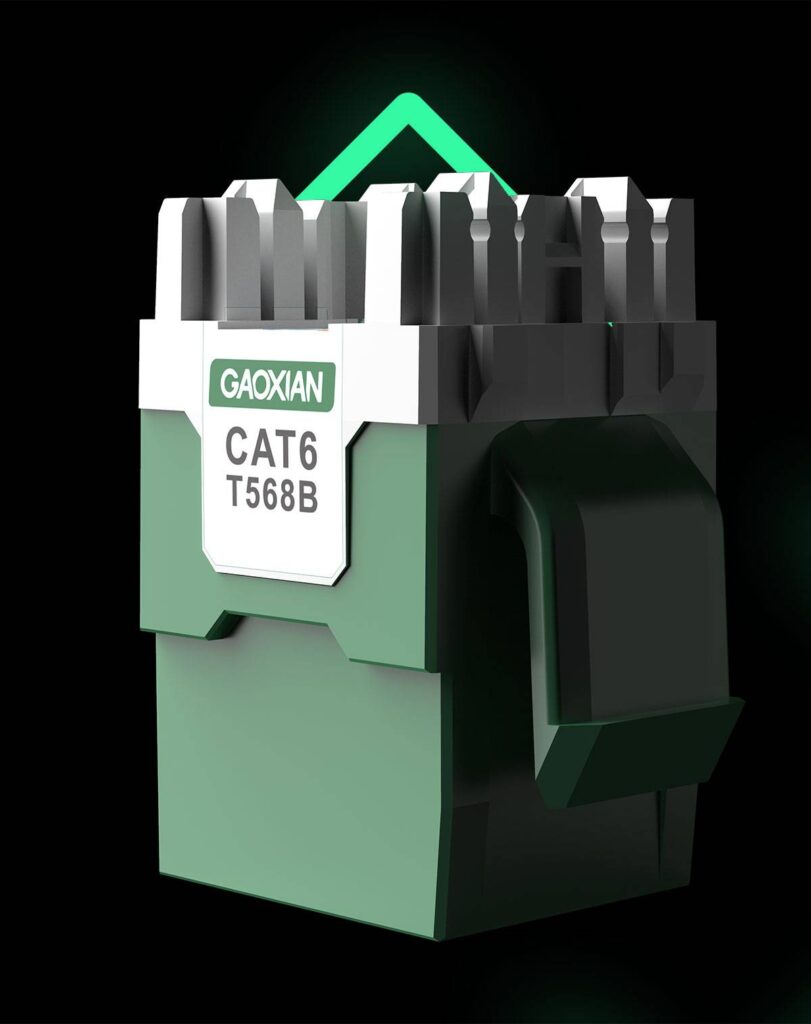

Slot for easy operation
The top of the middle stringing post of each pair of lines is designed as a slope peak structure,
it is not necessary to untie all twisted-pair wires during construction,
the line smooth card can be connected to the corresponding card slot by means of the slope peak structure

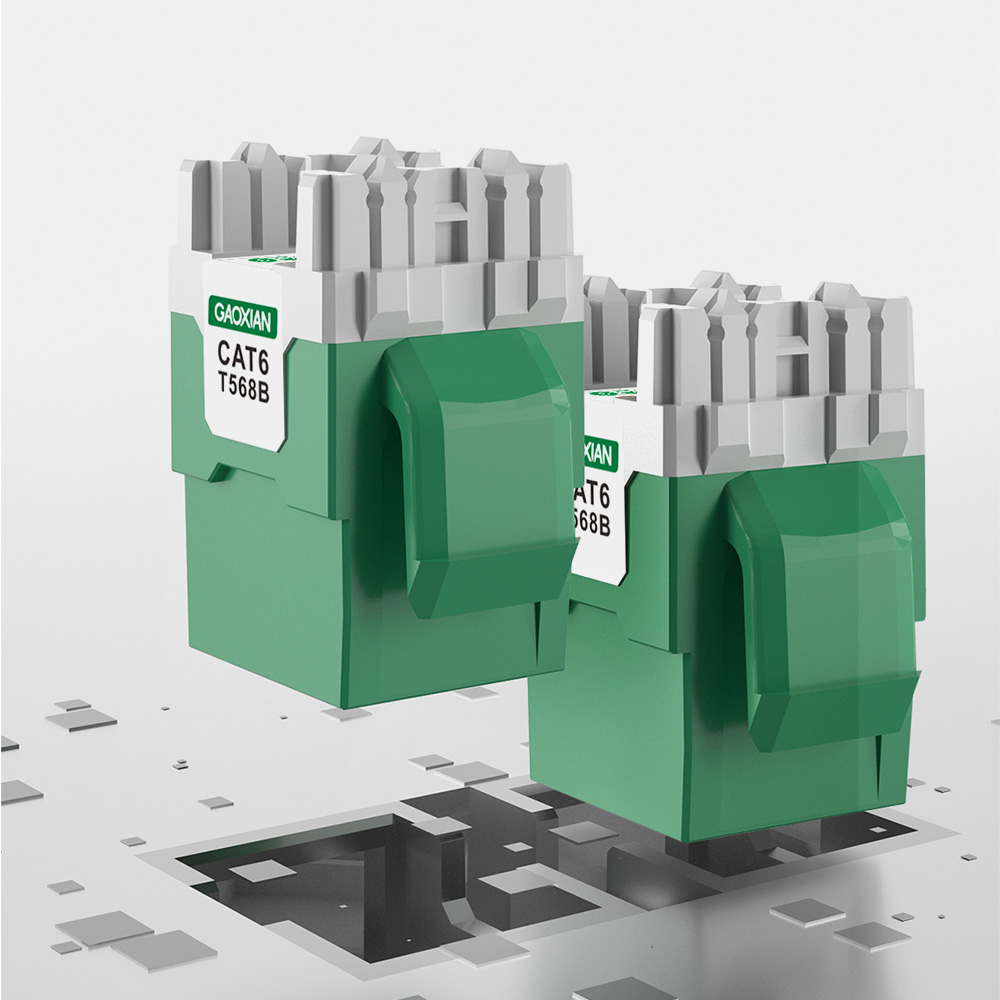

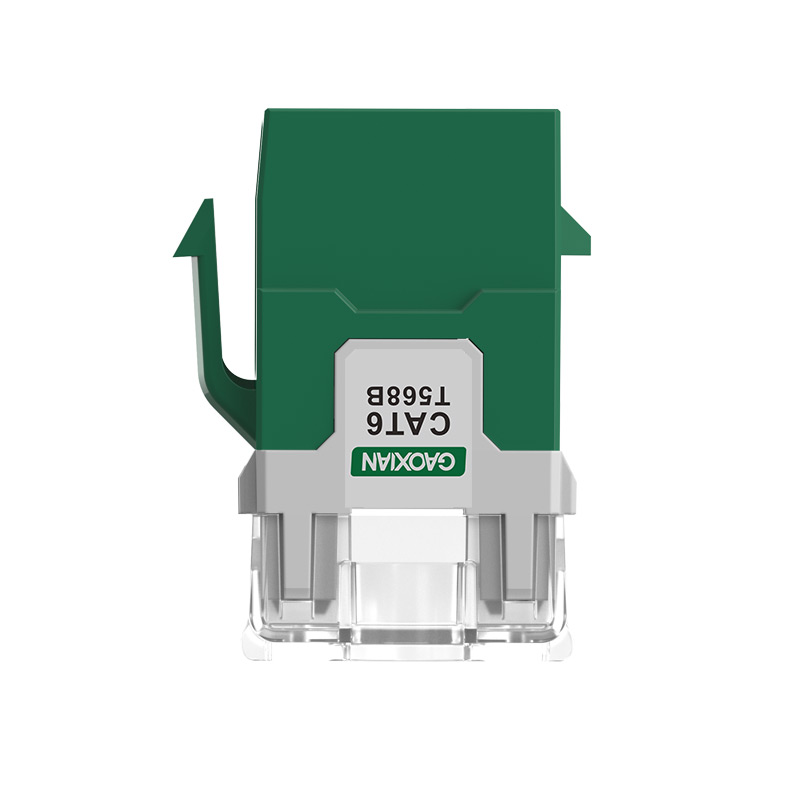

Clasp
There are two kinds of buckle: fixed buckle and movable buckle. Gaoxian engineering module uses the movable buckle, the buckle rises slightly,
make the module installed after a certain amount of outward tension to ensure that the installation firm.
