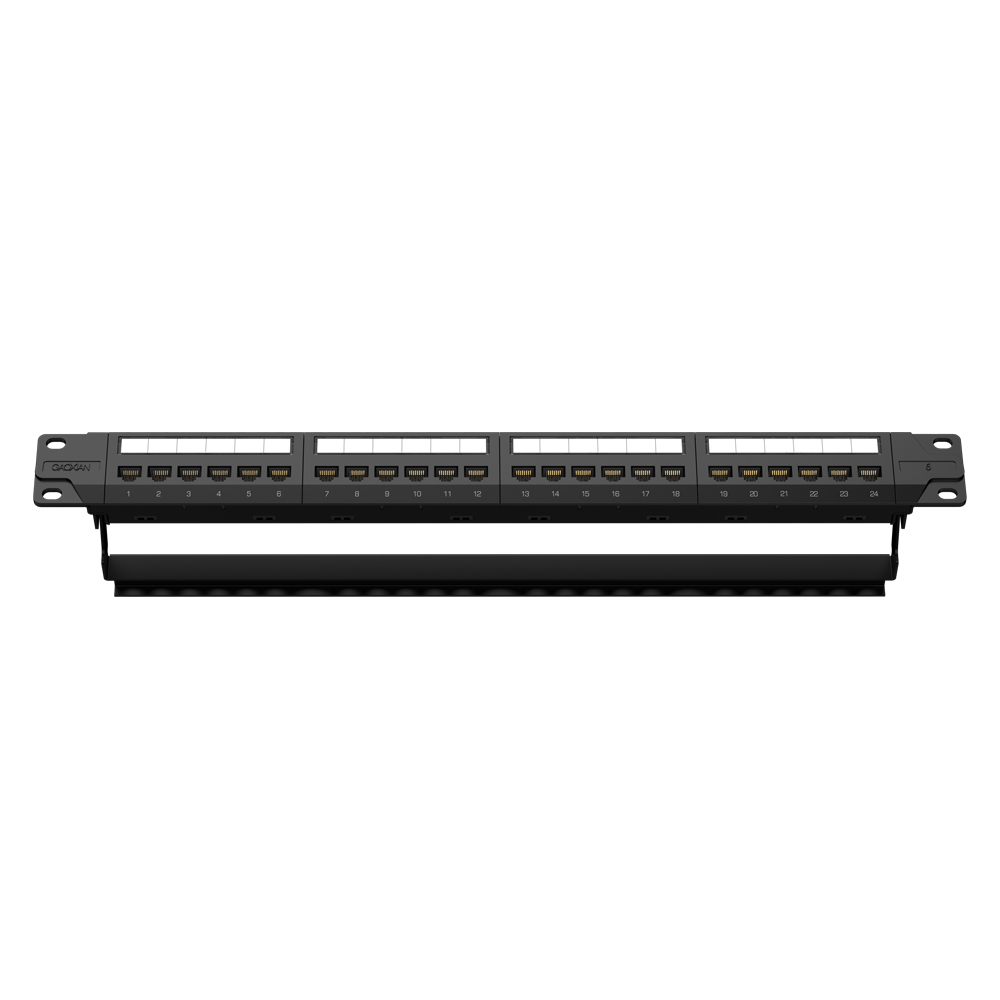

GXCAT5e-24UP 3.0
Overview
Cat5e UTP patch panel, made of polycabonate/Phosphor bronze/carbon structural steel
Description
Patch Panel, Cat5e, UTP, 1U, Fluke Pass
Implementation Standards
ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，IEC 60603-7-4，YD/T 926.3-2009
Quality Warranty
15 years warranty
Specifications
| Model no. | GXCAT5e-24UP 3.0 |
| Product Type | Patch Panel |
| Category | Cat5e |
| Shield Type | Unshield |
| Implementation Standards | ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 |
| AWG | 22~26AWG |
| Product Dimension | Height:1U, Length:19U |
| Ports | 24 |
| Number of Plug Insertion & Termination Cycles | Plug>1000, termination>250 |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Compatibility | Backwards to Cat5e |
| Power over Ethernet | PoE(Type1/2/3/4) & PoE+ |
| Operating Temperature(℃) | -20~75℃ |
| Quality Warranty | 15 years warranty |

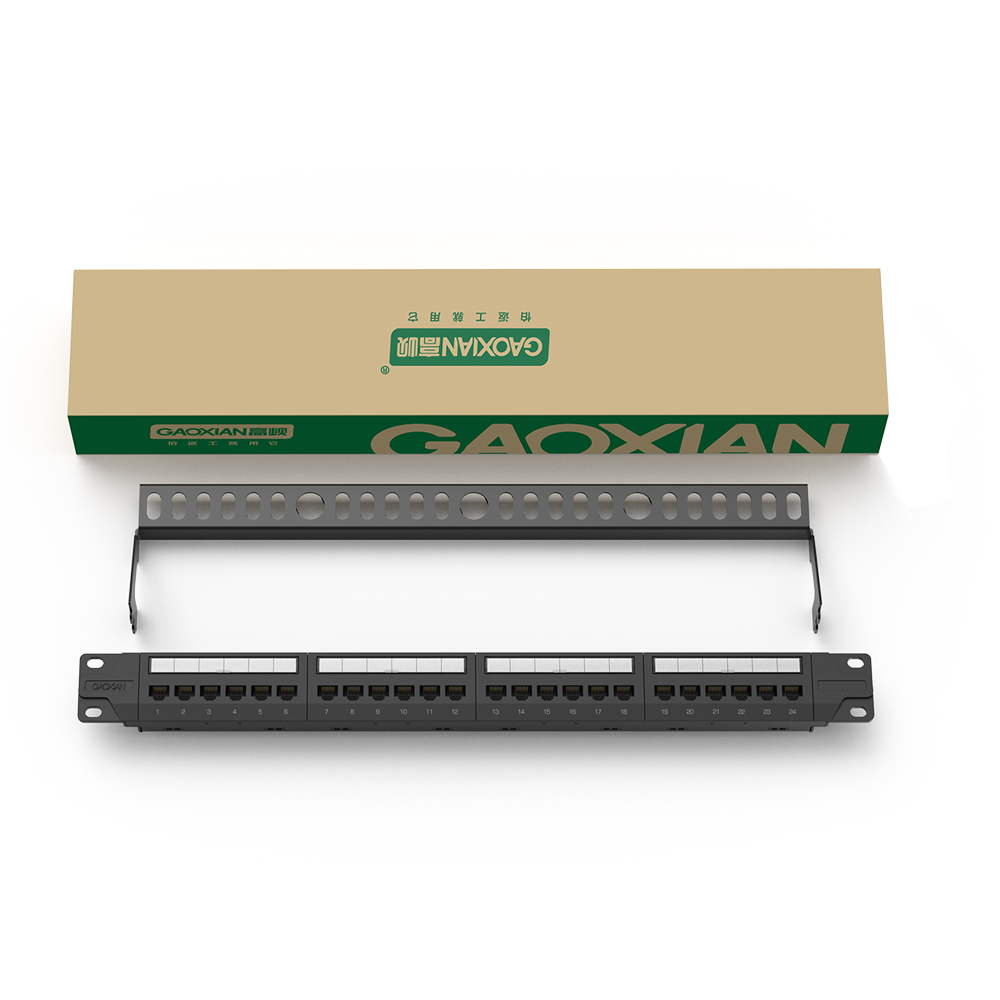

Packaging Detail
| Std. Qty | 1 pcs |
NO SCREWS
The simple design brings an elegant exterior while simultaneously providing superior performance. Clear logo, easy to install the design, this product is simple but not simple, full of details, I believe you will like

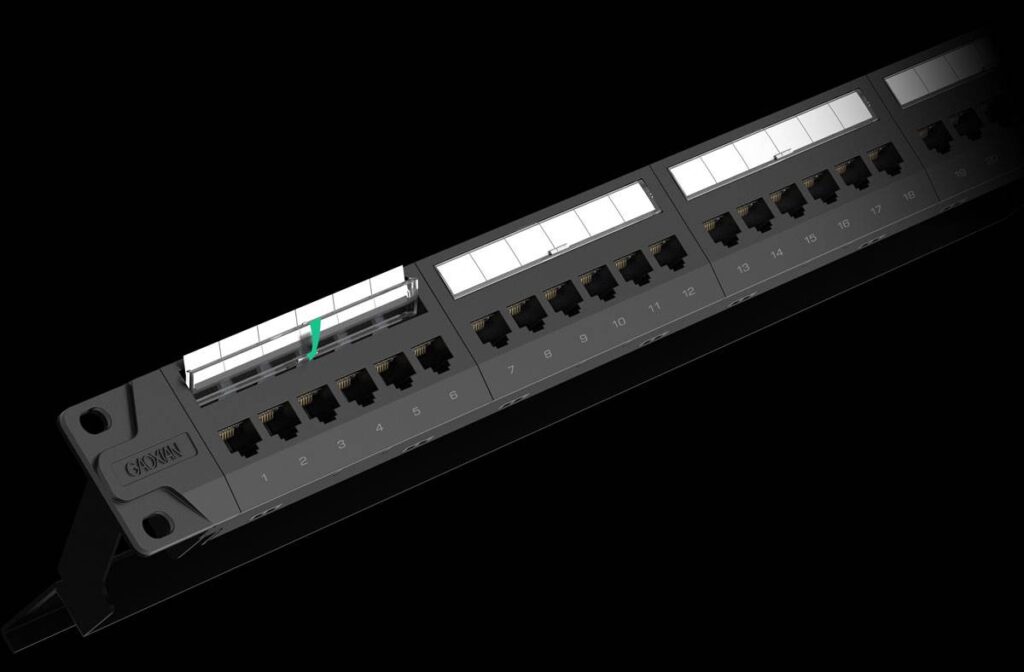

Click & Open, Simple as always
Label transparent strip using PC rubber, good toughness and high strength can be reused. Click to open the tag slot.
The label transparent strip is designed with a large width of paper slot for easy replacement of label paper.
Patch panel
cat5e
super competetive price
no screws
brief
