GXCAT6-FM
Overview

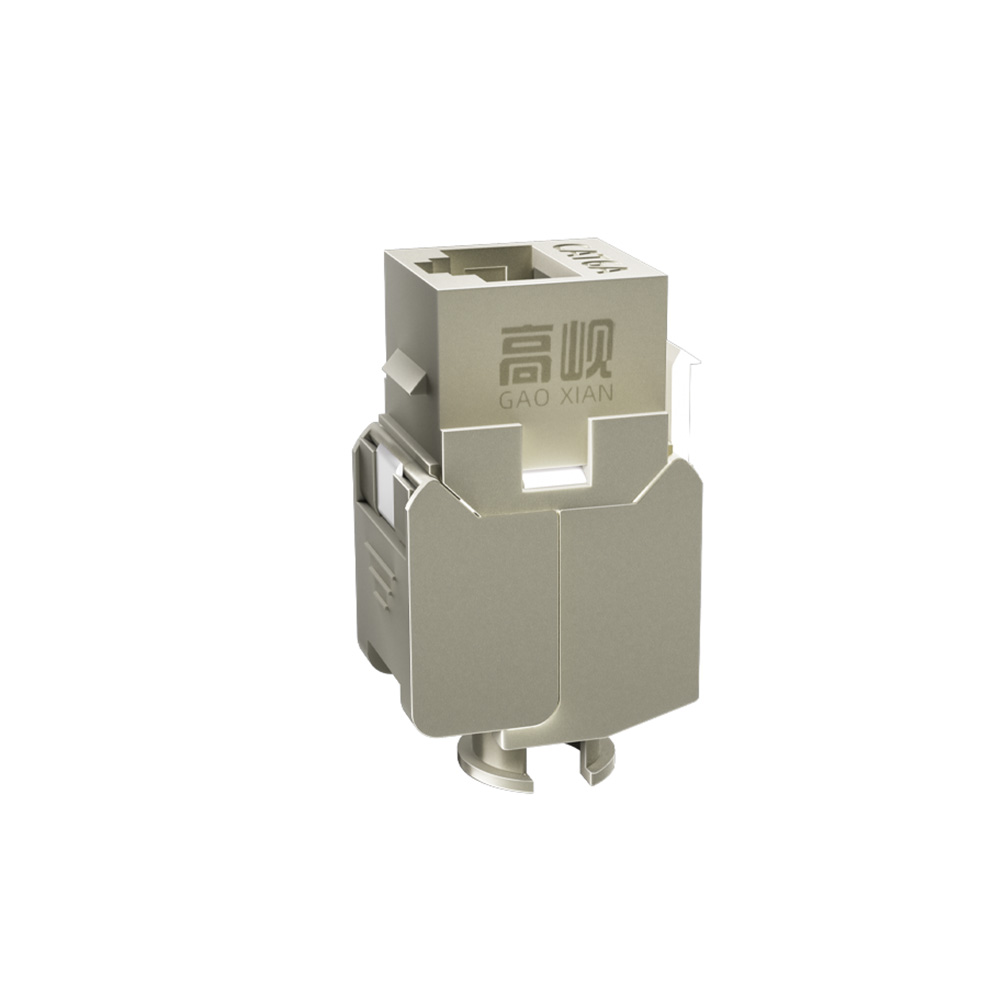

Jack for Cat6 system, shielded.
Description
Modular Jack, Cat6, 22~26AWG, Phosphor bronze, Polycarbonate, Nickel-zinc alloy plating
Implementation Standards
ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009
Quality Warranty
15 years warranty
Specifications
| Product Type | Modular Jack |
| Performance Level | Category 6 |
| Shield Type | FTP |
| Wiring | T568B |
| Conductor Gauge (AWG) | 22~26AWG |
| Implementation Standards | ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 |
| Applications support | 10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Compatibility | Backwards to Cat5e |
| Power over Ethernet | PoE(Type1/2/3/4) & PoE+ |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Green | RoHS |
| Number of Plug Insertion & Termination Cycles | Plug>1000, termination>250 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Fluke Standard | Fluke permanent link test |
Packaging Detail
| Std. Qty | 1 pcs |
Fluke Test
To judge the module transmission performance, we need to use fluke test equipment to test.
Only through the fluke permanent link Test Module, it can be determined that it can meet the transmission requirements of gigabit network.
Buckle design
Compatible with most panels on the market
