GXCAT6-UT-LB-GC
Overview
GAOXIAN Cat6 UTP exceeds all ANSI/TIA and ISO/IEC requirements. Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description

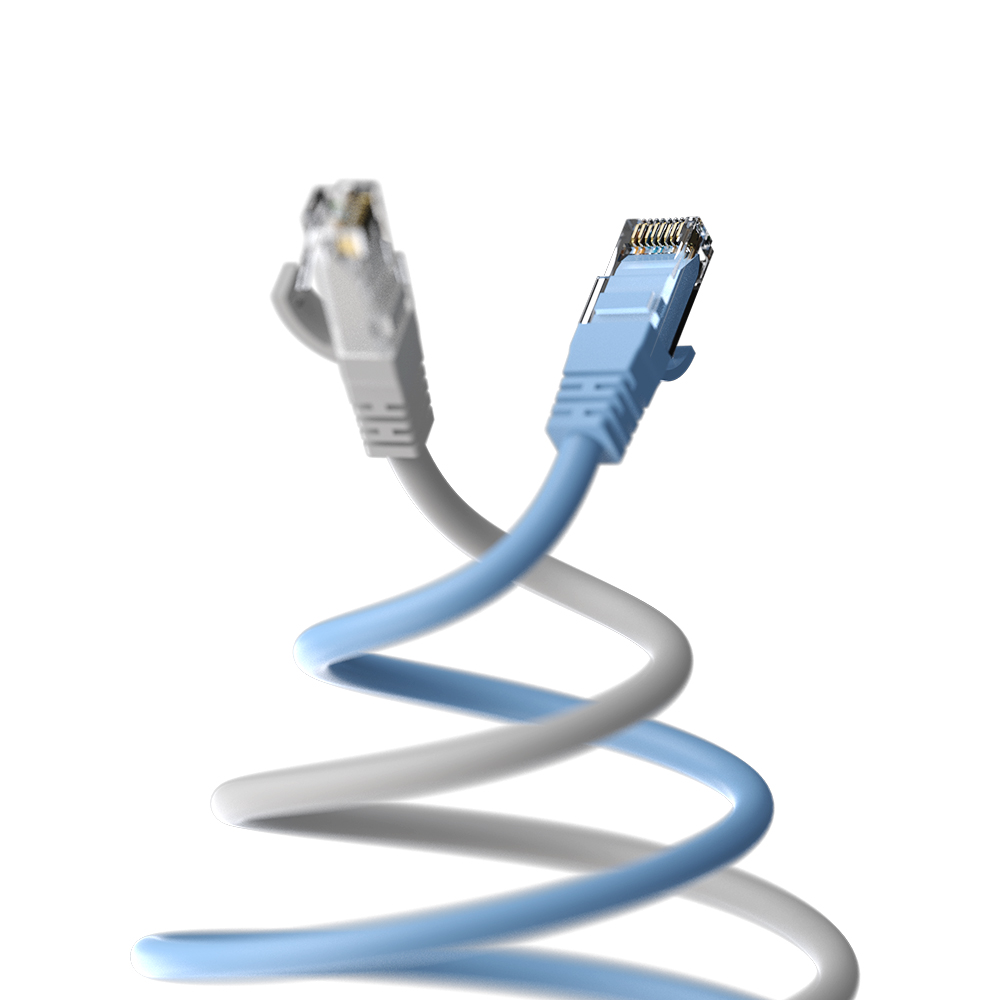

Patch cord, Cable, Copper, Category 6, 4 Pair, Solid, UTP, 26 AWG, Grey & Blue
Implementation Standards
ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009
Product Length
0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m
Specifications
| Product Type | Patch Cord |
| Performance Level | Category 6 |
| Shield Type | UTP |
| Wiring | T568B |
| Nominal Jacket OD | |

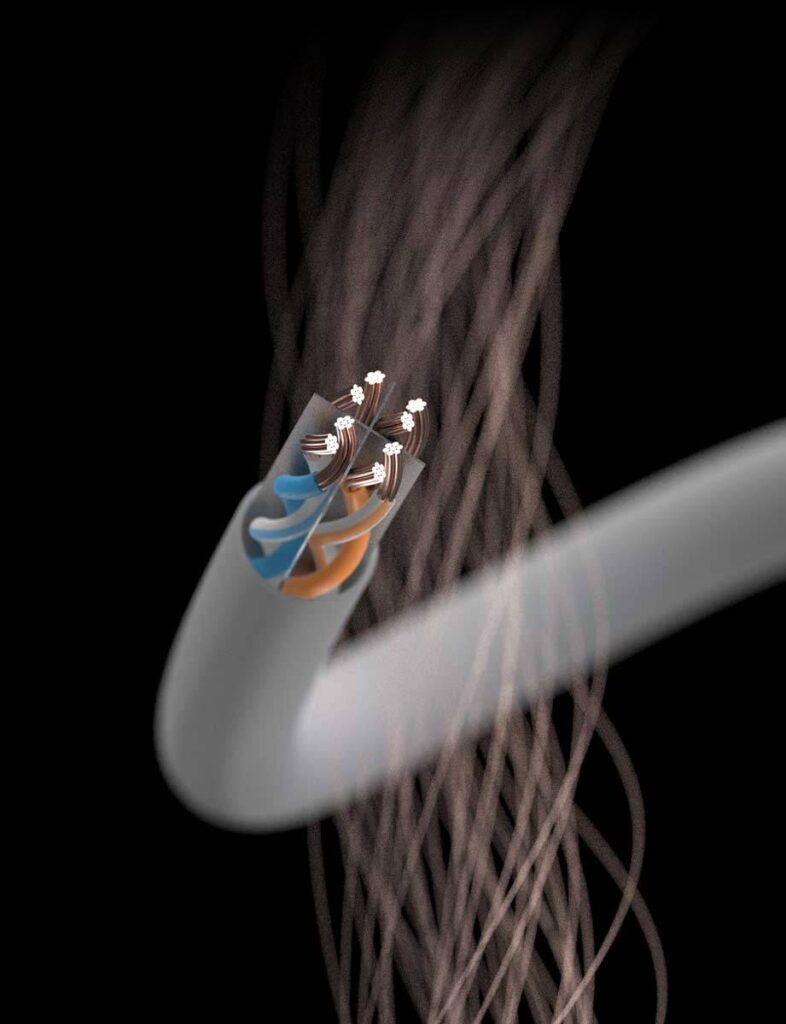

| Conductor Gauge (AWG) | 26AWG 7*8, Standard tinned copper |
| Implementation Standards | ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Insulation Resistance | 500 mΩ |
| Compatibility | Backwards to Cat5e |
| Current Rating(25℃) | 1.5A |
| Power over Ethernet | PoE & PoE+ |
| Surface Transfer Impedance | < 10mΩ/m(10MHz) |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Plug Materials | Polycarbonate |
| Plug Insertion Cycles | 1000 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Bend Radius | 50mm |
| Fluke Standard | Fluke Channel test |
| Color | Light Blue & Grey |
Packaging Detail
| Std. Pkg. meter. | 0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m |
| Std. Qty | 2pcs(0.3m) ; 1pcs(other) ; |
Contact stability matching
Whether it is a surveillance camera, or switch routers, the most feared is to plug in the jumper lamp does not light, which means that the link is not open, link no signal transmission. According to IEC standard, RJ45 connector plug-and-pull not less than 750 times, and the engineering jump wire plug-and-pull not less than 1000 times, higher than the standard requirements. Fork nickel-plated gold-plated, not only a solid connection, close contact, but also anti-oxidation, wear resistance.
Each one passed the test
A link pass is not equivalent to being able to transmit a signal; in other words, a link pass is not equivalent to being able to pass a Fluke test; and being able to pass a Fluke ensures that a link pass can transmit a signal. A qualified network jumper must be tested by Fluke before it leaves the factory.
