GXCAT6-UT-OR/GREY/RE/PU
Overview
GAOXIAN Cat6 UTP exceeds all ANSI/TIA and ISO/IEC requirements. Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description
Patch cord, Cable, Copper, Category 6, 4 Pair, Solid, UTP, 24 AWG, Orange/Grey/Red/Purple
Implementation Standards
ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009
Product Package
0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m
Specifications
| Product Type | Patch Cord |
| Performance Level | Category 6 |
| Shield Type | UTP |
| Wiring | T568B |
| Nominal Jacket OD | |
| Conductor Gauge (AWG) | 24AWG 7*8, Standard tinned copper |
| Implementation Standards | ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Insulation Resistance | 500 mΩ |
| Compatibility | Backwards to Cat5e |
| Current Rating(25℃) | 1.5A |
| Power over Ethernet | PoE & PoE+ |
| Surface Transfer Impedance | < 10mΩ/m(10MHz) |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Plug Materials | Polycarbonate |
| Plug Insertion Cycles | 1000 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Bend Radius | 50mm |
| Fluke Standard | Fluke Patch Cord test |
| Color | Orange/Red/Pruple/Grey |
Packaging Detail
| Std. Ctn. meter. | 0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m |
| Std. Qty | 1 pcs |

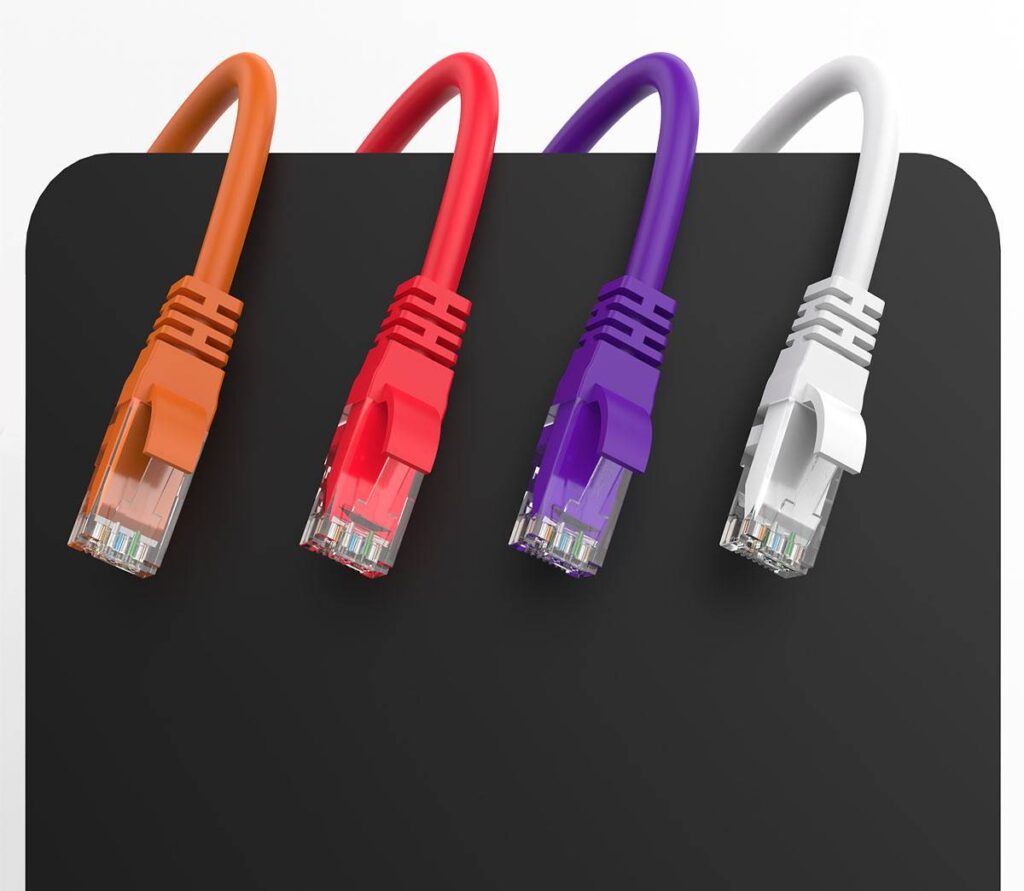

Colorful
Multiple color options: orange/red/purple/grey
Soft/Flexible
7*8 copper core structure, easy to bend.
