GXCAT5e-UT-BL
Overview

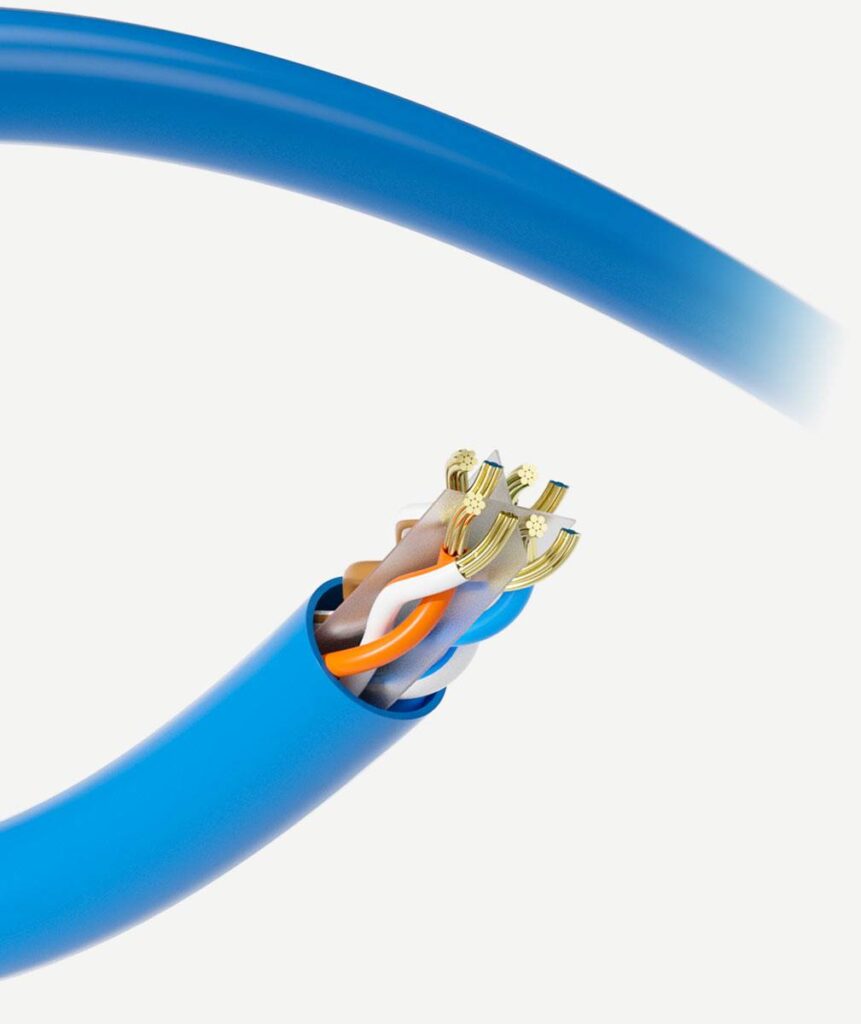

GAOXIAN Cat5e UTP cable exceeds all ANSI/TIA and ISO/IEC requirements for category 5e/class D transmission performance. Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description

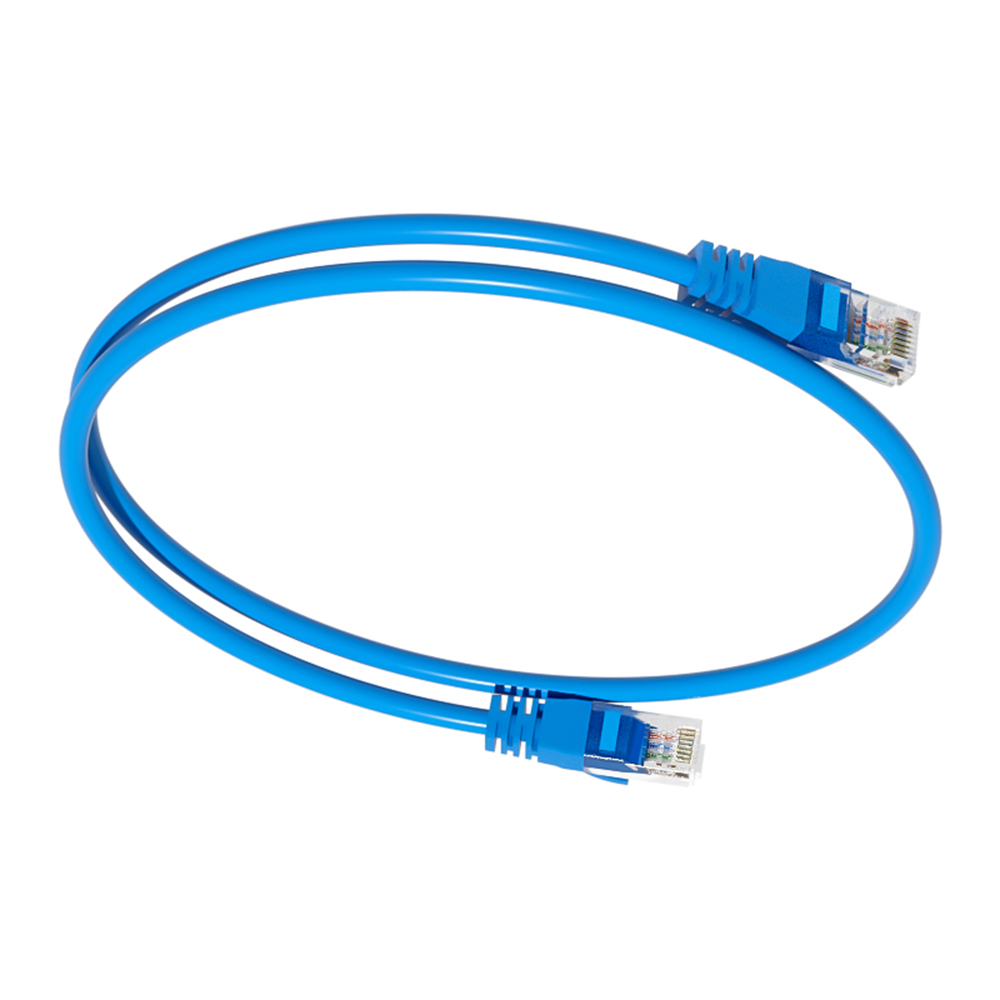

Patch cord, Cable, Copper, Category 5e, 4 Pair, Solid, UTP,305 Meter, 24 AWG, Grey
Implementation Standards
ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009
Product Package
0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m
Specifications
| Product Type | Patch Cord |
| Performance Level | Category 5e |
| Shield Type | UTP |
| Wiring | T568B |
| Nominal Jacket OD | 5.0mm |
| Conductor Gauge (AWG) | 24AWG 7*8, Standard tinned copper |
| Conductor Insulation | 1.0mm |
| Implementation Standards | ANSI/TIA568C.2，ISO/IEC11801-1:2008，YD/T1019-2013，YD/T926.2-2009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Contact Resistance | 20Ω |
| Input to Output Resistance | 200Ω |
| Min.Dielectric Withstand Voltage(contact to contact) | 1000V DC or AC peak |
| Insulation Resistance | 500 mΩ |
| Compatibility | Backwards to Cat5e |
| Current Rating(25℃) | 1.5A |
| Power over Ethernet | PoE & PoE+ |
| Surface Transfer Impedance | < 10mΩ/m(10MHz) |
| Operating Temperature(℃) | -10~60℃ |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Plug Materials | Polycarbonate |
| Plug Insertion Cycles | 750 |
| Min.Plug Retention Force | 50N |
| Plug Compatibility | RJ45 |
| Bend Radius | 50mm |
| Fluke Standard | Fluke Patch Cord test |
| Color | Blue |
Packaging Detail
| Std. Ctn. meter. | 0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m |
| Std. Ctn. Size(m) | 外箱尺寸 待填 |
| Std. Ctn. Volume (m3) | 外箱体积 待填 |
Fluke Test
Pass the Fluke Cat5e patch cord test
PE Isolator
For better NEXT performance
