GXCAT6-057UW
Overview
GAOXIAN Cat6 UTP cable exceeds all ANSI/TIA and ISO/IEC requirements . Utilizing GAOXIAN cable is the ideal way to ensure optimum channel performance.
Description

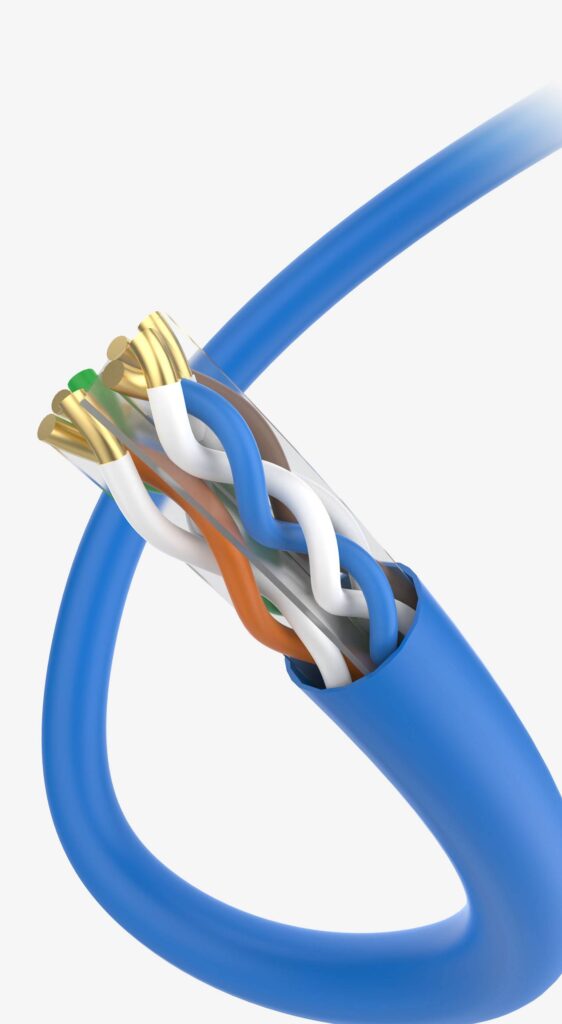

Cable, Copper, Category 5e, 4 Pair, Solid, UTP,305 Meter, 23 AWG, Blue & Grey
Implementation Standards
ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.2-2009
Product Package

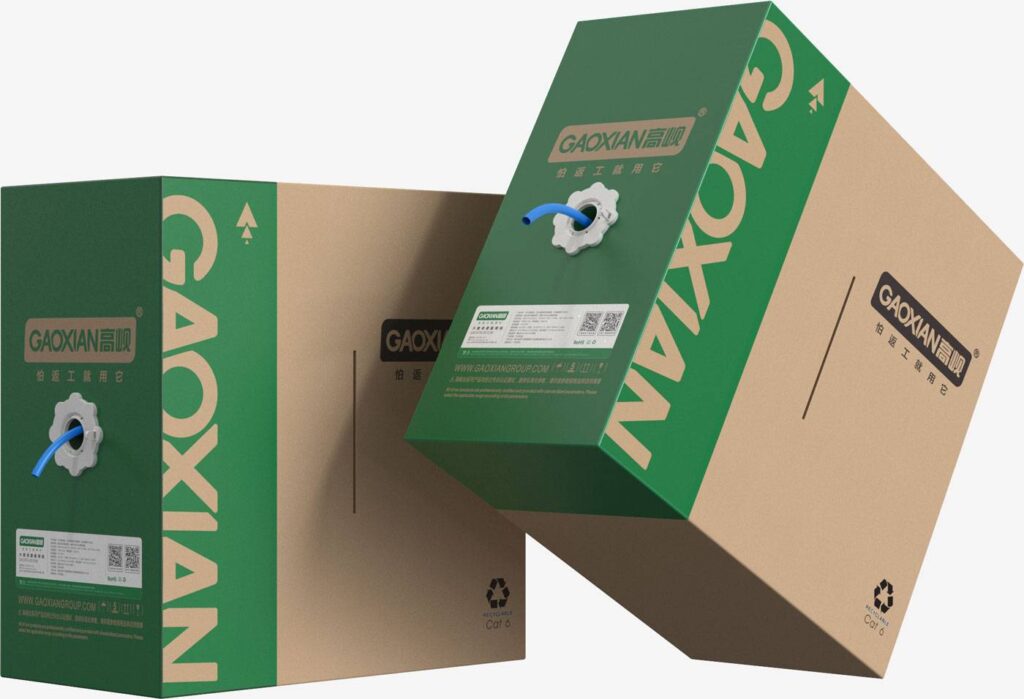

305m/box
Specifications
| Product Type | Copper Cable |
| Performance Level | Category 6 |
| Shield Type | UTP |
| Nominal Jacket OD | |
| Conductor Gauge (AWG) | 23AWG 0.57mm, solid bare copper |
| Implementation Standards | ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 1019-2013、YD/T926.22009 |
| Applications support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE) |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| DC Resistance | <9.38Ω/100m |
| DC Resistance Unbalance | 5% |
| Mutual Capacitance | 5nF/100m |
| Capacitance Unbalance | <330pF/100m |
| Characteristic Impmedance(ohms) | 1~100MHz: 100 ± 15% 100~350MHz：100 ± 22% |
| NVP | 65% |
| Delay Skew | ≤40ns |
| Pulling Tension(max) | 110N |
| Bend Radius(min) | 25mm |
| Installation Temperature(℃) | 0~60℃ |
| Storage Temperature(℃) | -20~75℃ |
| Operating Temperature(℃) | -20~60℃ |

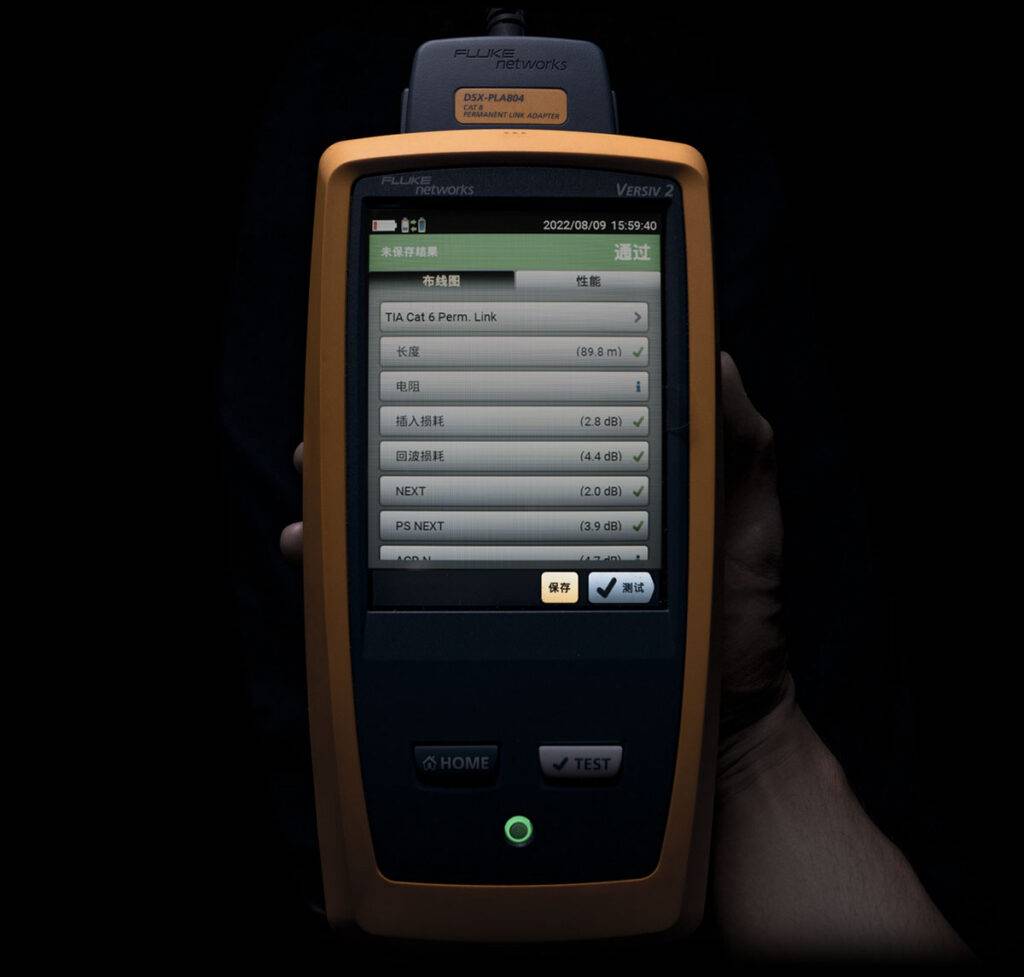

| Fluke Standard | Fluke 90-meter Permanent Link test |
| Flame Resistance | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Color | Blue & Grey |
| Quality warranty | 15 years warranty |
Packaging Detail
| Std. Ctn. meter. | 305m |
